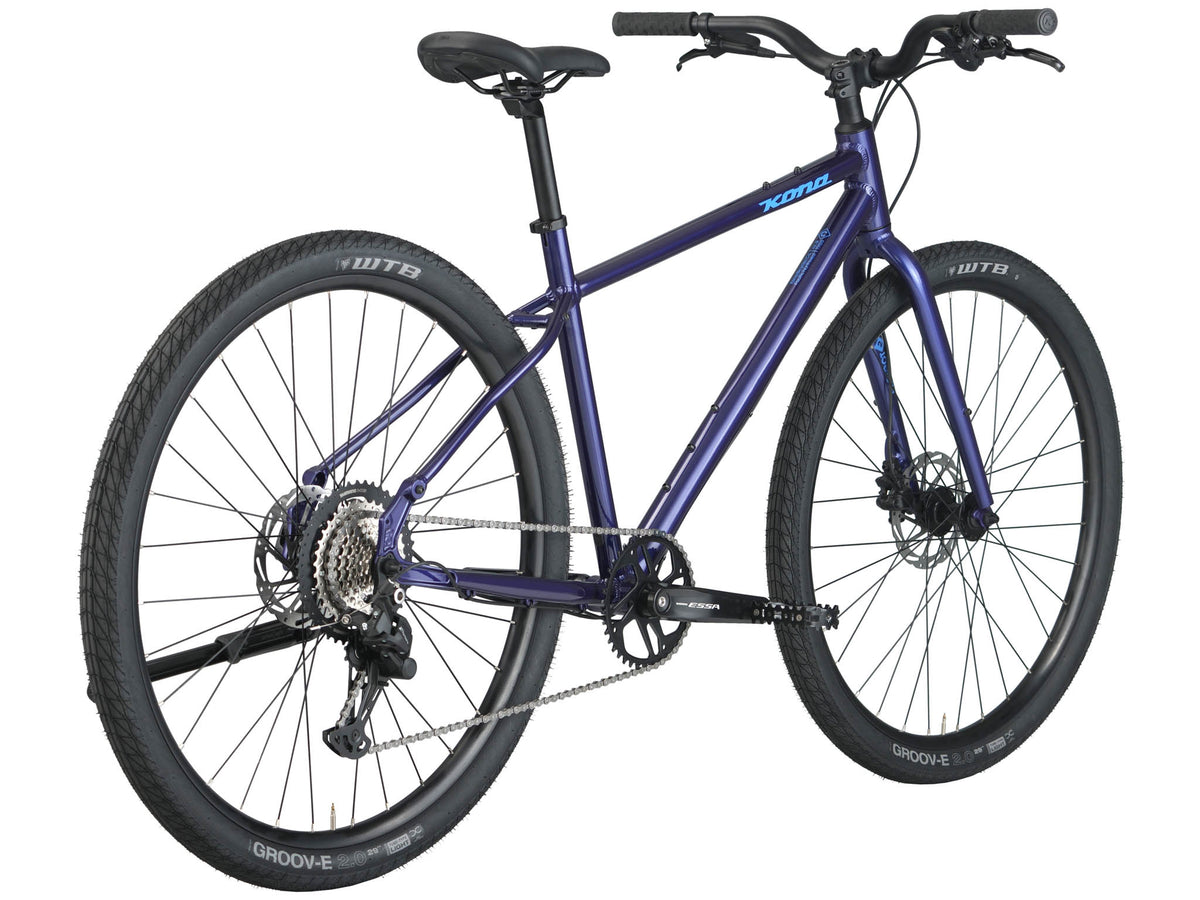

Dew
Tax included.
Not finding what you want here?
Contact your local Kona Dealer.
The Dew is a commuter and versatile all-arounder for anyone who wants to enjoy more of life on two wheels. Its lightweight aluminum frame keeps things approachable, while a healthy dose of mountain bike DNA gives it the confident handling, everyday durability, and relaxed, intuitive feel that makes a Kona a Kona. Take it to work, run errands, cut through the park, or keep riding because the next turn looks more interesting than heading home. It’s simple, reliable, and ready for wherever you’re going… and whatever distracts you along the way.
SPECS & GEOMETRY
SPECIFICATIONS
| FRAME | Kona 6061 Aluminum Butted |
| SIZES | S, M, L, XL |
| REAR SHOCK | n/a |
| FORK | Kona 6061 Aluminum |

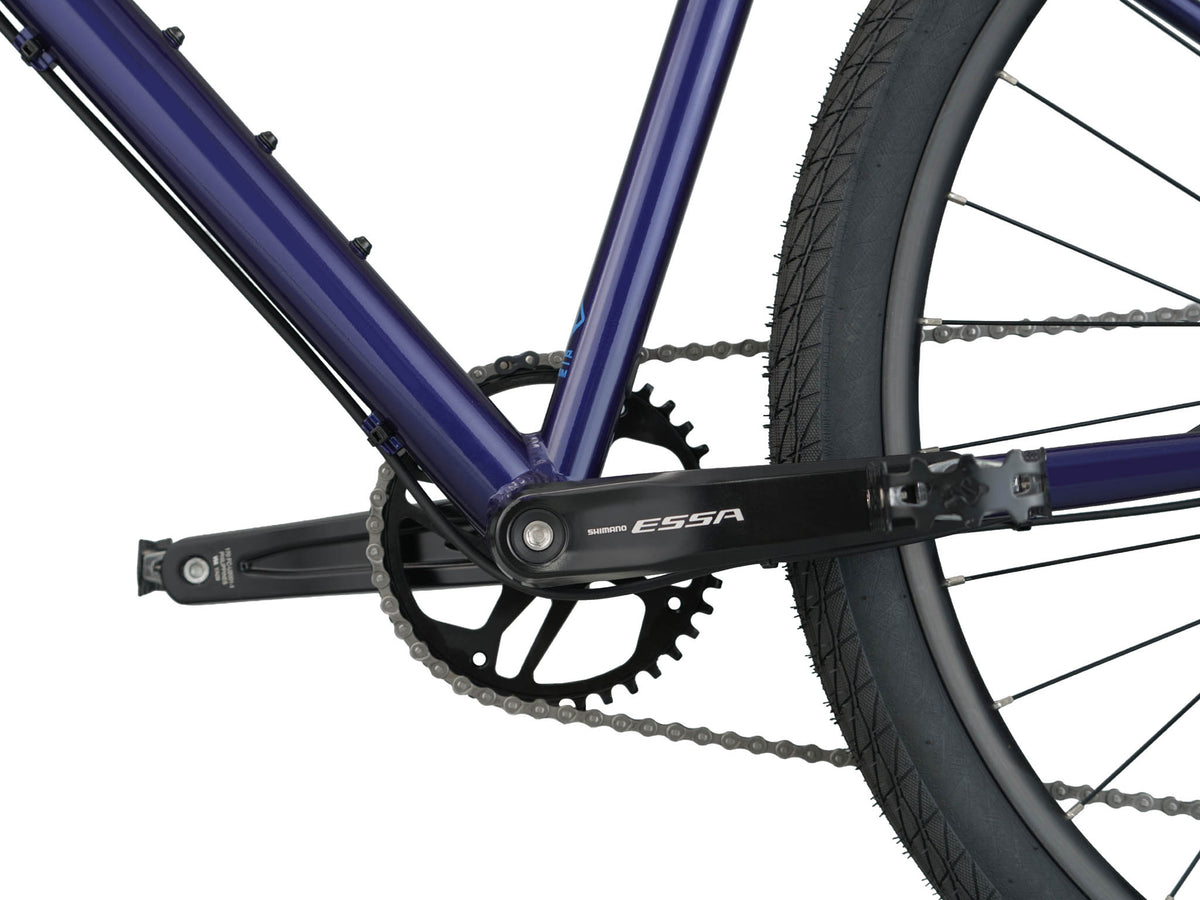

| CRANKSET | Shimano ESSA 2000 40t / S-M 170mm / L-XL 175mm |
| BOTTOM BRACKET | Feimin BSA 73 |
| PEDALS | Feimin Platform |
| CHAIN | KMC Z8.3 |
| CASSETTE | Shimano ACERA 11-45t 8spd |
| CHAINGUIDE | n/a |
| FRONT DERAILLEUR | n/a |
| REAR DERAILLEUR | Shimano ESSA RDU2000 |
| SHIFTER | Shimano ALTUS |
| BRAKE CALIPERS | Tektro M280 2-piston |
| FRONT BRAKE ROTOR | Tektro 160mm 6B 1.8mm |
| REAR BRAKE ROTOR | Tektro 160mm 6B 1.8mm |
| BRAKE LEVERS | Tektro M280 |
| HEADSET | Feimin ZS44/ZS44 |
| HANDLEBAR | Kona 31.8mm / Back 10º / Up 6º / Rise 70mm / Width 700mm |
| STEM | Kona 31.8mm / Rise 3º / Length 45mm |
| SEATPOST | Kona w/Offset 27.2mm / 350mm |
| SEAT CLAMP | Kona Clamp 31.8mm |
| GRIPS | Kona Key Grip |
| SADDLE | Kona Commuter |
| FRONT HUB | Joytech 9x100mm |
| REAR HUB | Joytech 10x135mm |
| SPOKES | Stainless 2.0mm Black |
| RIMS | Double Wall Aluminum |
| FRONT TIRE | WTB GROOV-E 29x2.0" |
| REAR TIRE | WTB GROOV-E 29x2.0" |
| PAINT COLOR | Gloss Fancy Karman w/ Electric Blue Decals |
| EXTRAS | Bell / Kickstand |
GEOMETRY
| Size | S | M | L | XL | |
| 1 | ST Length | 420 | 470 | 520 | 570 |
| 2 | TT Length | 565 | 606 | 648 | 695 |
| 3 | Reach | 400 | 430 | 460 | 490 |
| 4 | Stack | 539 | 576 | 614 | 651 |
| 5 | Standover | 711 | 733 | 767 | 809 |
| 6 | HT Angle | 69 | 69 | 69 | 69 |
| 7 | HT Length | 90 | 130 | 170 | 210 |
| 8 | ST Angle | 73 | 73 | 73 | 73 |
| 9 | CS Length | 470 | 470 | 470 | 470 |
| 10 | BB Drop | 70 | 70 | 70 | 70 |
| 11 | BB Height | 295 | 295 | 295 | 295 |
| 12 | Wheelbase | 1098 | 1143 | 1187 | 1231 |
| 13 | Front Center | 637 | 682 | 726 | 770 |
| 14 | Fork Length | 430 | 430 | 430 | 430 |
| 15 | Fork Offset | 50 | 50 | 50 | 50 |
Sizing & Selection
Choosing the right bike size is essential for comfort, performance, and the best riding experience. To help you select the correct size:
- Check Our Sizing and Fit Chart: Use the chart below to determine the size range that works best for your height and riding style.
- Get Personalized Recommendations: Not sure which size to choose? Fill out our Sizing Form, and Kona staff will provide suggestions to help you find the perfect fit.
GRAVEL / DROP BAR / URBAN
| Height/Inches | Height/Metric | Inseam/Inches | Inseam/Metric | Rove | Libre | Sutra/Ouroboros | Dews | CoCo |
|---|---|---|---|---|---|---|---|---|
| 4'10"-5'1" | 147-155cm | 24”-27” | 61-69cm | 48cm | 50cm | 48cm | N/A | XS |
| 5'0"-5'3" | 152-160cm | 26"-29" | 66-74cm | 48-50cm | 50cm | 48-50cm | Small | Small |
| 5'2"-5'7" | 157-170cm | 27"-30" | 69-76cm | 48-52cm | 50-52cm | 48-52cm | Small, Medium | Small, Medium |
| 5'6"-5'10" | 168-178cm | 29"-31" | 74-79cm | 52-54cm | 52-54cm | 52-54cm | Medium | Medium |
| 5'9"-6'0" | 175-183cm | 30"-33" | 76-84cm | 52-56cm | 54-56cm | 54-56cm | Medium, Large | Medium, Large |
| 5'11"-6'2" | 180-188cm | 32"-35" | 81-89cm | 54-58cm | 54-58cm | 54-58cm | Large, XL | Large |
| 6'1"-6'5" | 185-196cm | 33"-36" | 84-91cm | 56-58cm | 58cm | 56-58cm | XL | N/A |
MTB FULL SUSPENSION / HARDTAIL / SPLICE
| Height/Inches | Height/Metric | Inseam/Inches | Inseam/Metric | MTB/XC Trail/Fat | All Mountain/Enduro | Splice |
|---|---|---|---|---|---|---|
| 4'10"-5'1" | 147-155cm | 24”-27” | 61-69cm | XS | XS | Small |
| 5'0"-5'3" | 152-160cm | 26"-29" | 66-74cm | Small | Small | Small |
| 5'2"-5'7" | 157-170cm | 27"-30" | 69-76cm | Small, Medium | Small, Medium | Small, Medium |
| 5'6"-5'10" | 168-178cm | 29"-31" | 74-79cm | Medium | Medium | Medium |
| 5'9"-6'0" | 175-183cm | 30"-33" | 76-84cm | Medium, Large | Medium, Large | Medium, Large |
| 5'11"-6'2" | 180-188cm | 32"-35" | 81-89cm | Large, XL | Large, XL | Large, XL |
| 6'1"-6'5" | 185-196cm | 33"-36" | 84-91cm | Large, XL | Large, XL | Large, XL |
