Sale price€999,00 EUR
Contact dealer for availability

Tax included.

Size: SM

Not finding what you want here?
Contact your local Kona Dealer.

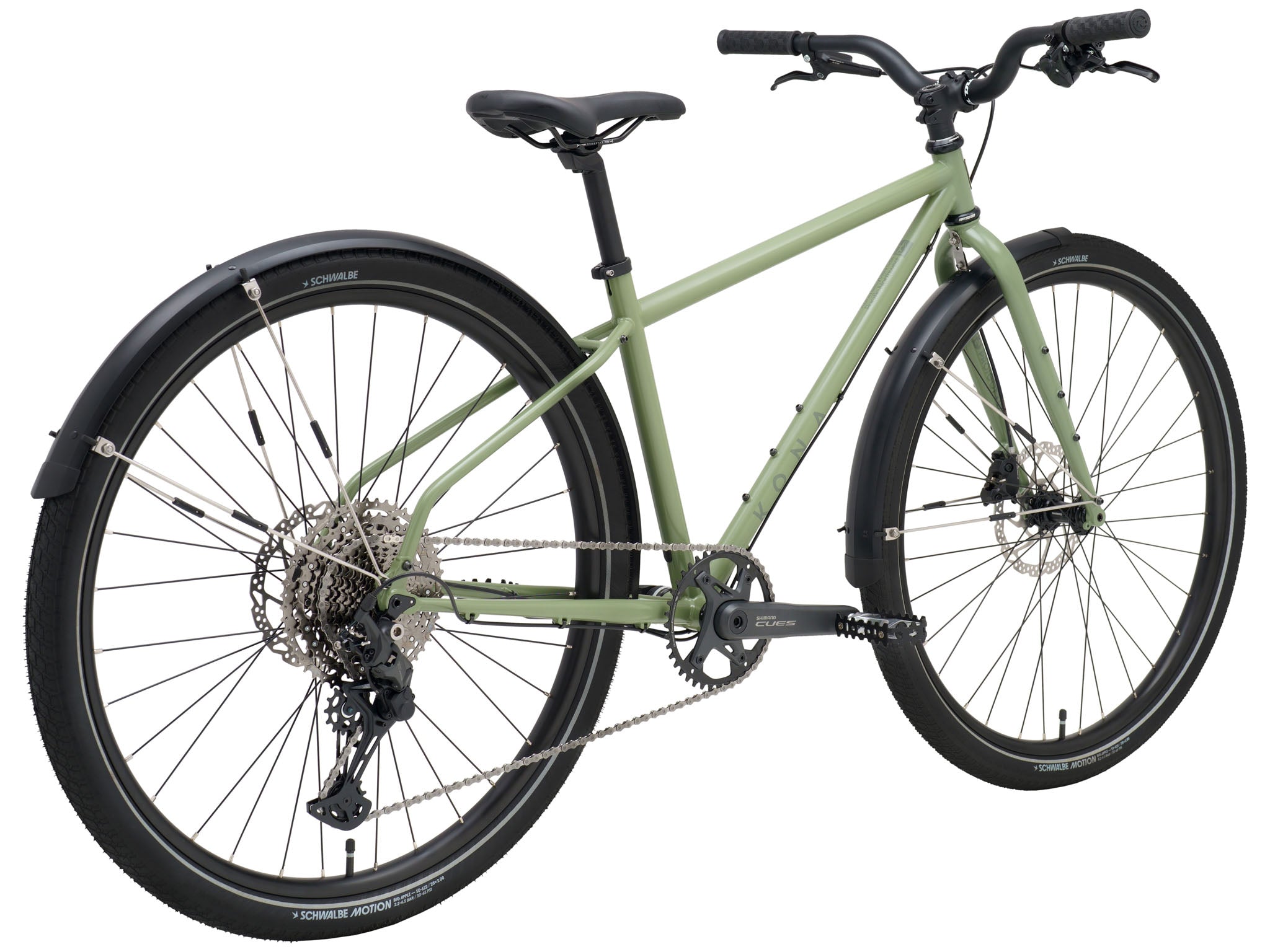

A refined steel commuter that gives as much style as it does durability. With thru-axles front and rear for a smoother, more responsive ride, and external headset cups for that classic look, the Dr Dew is built to make every ride feel solid and sure-footed.

SPECS & GEOMETRY

SPECIFICATIONS

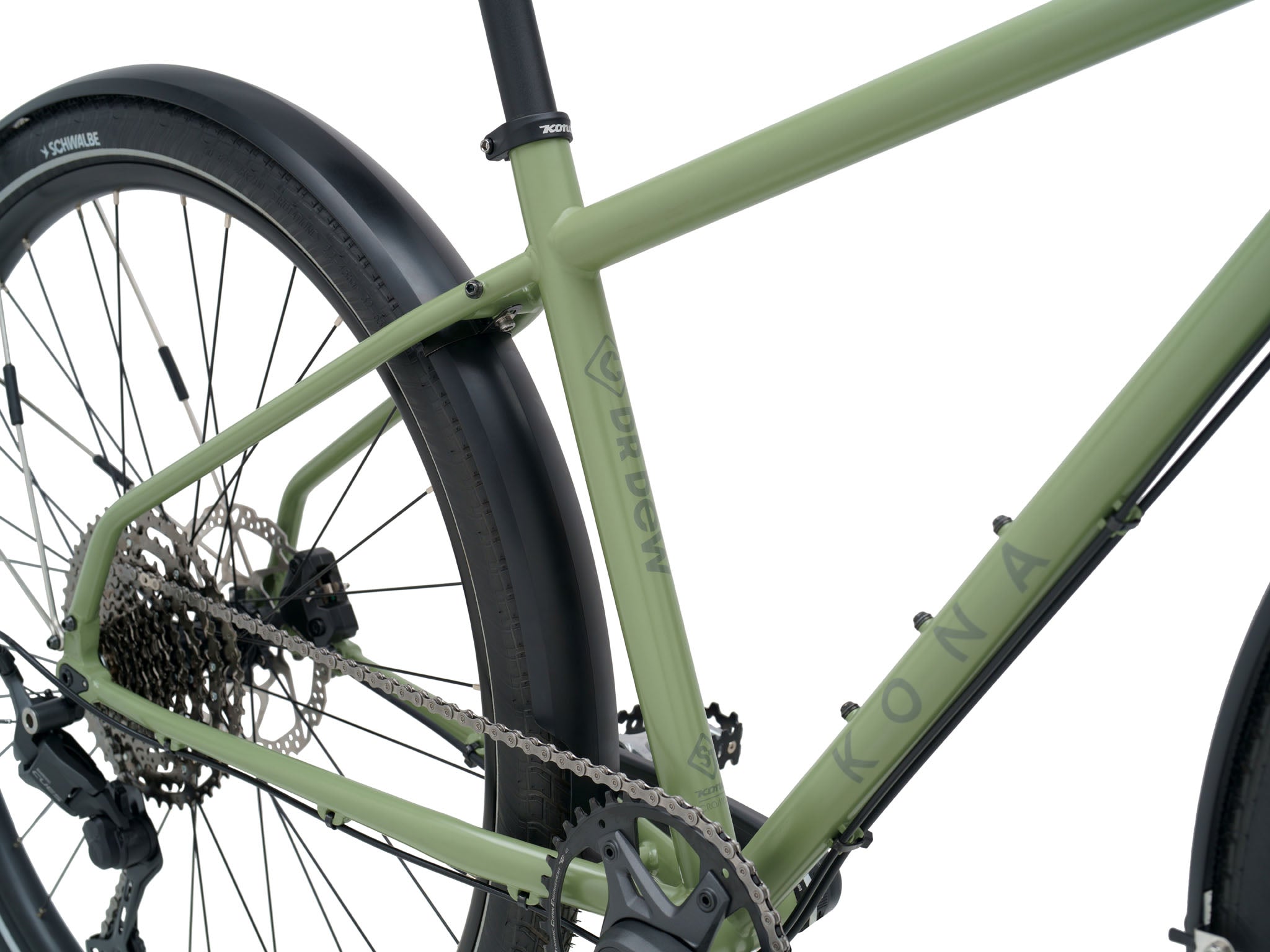

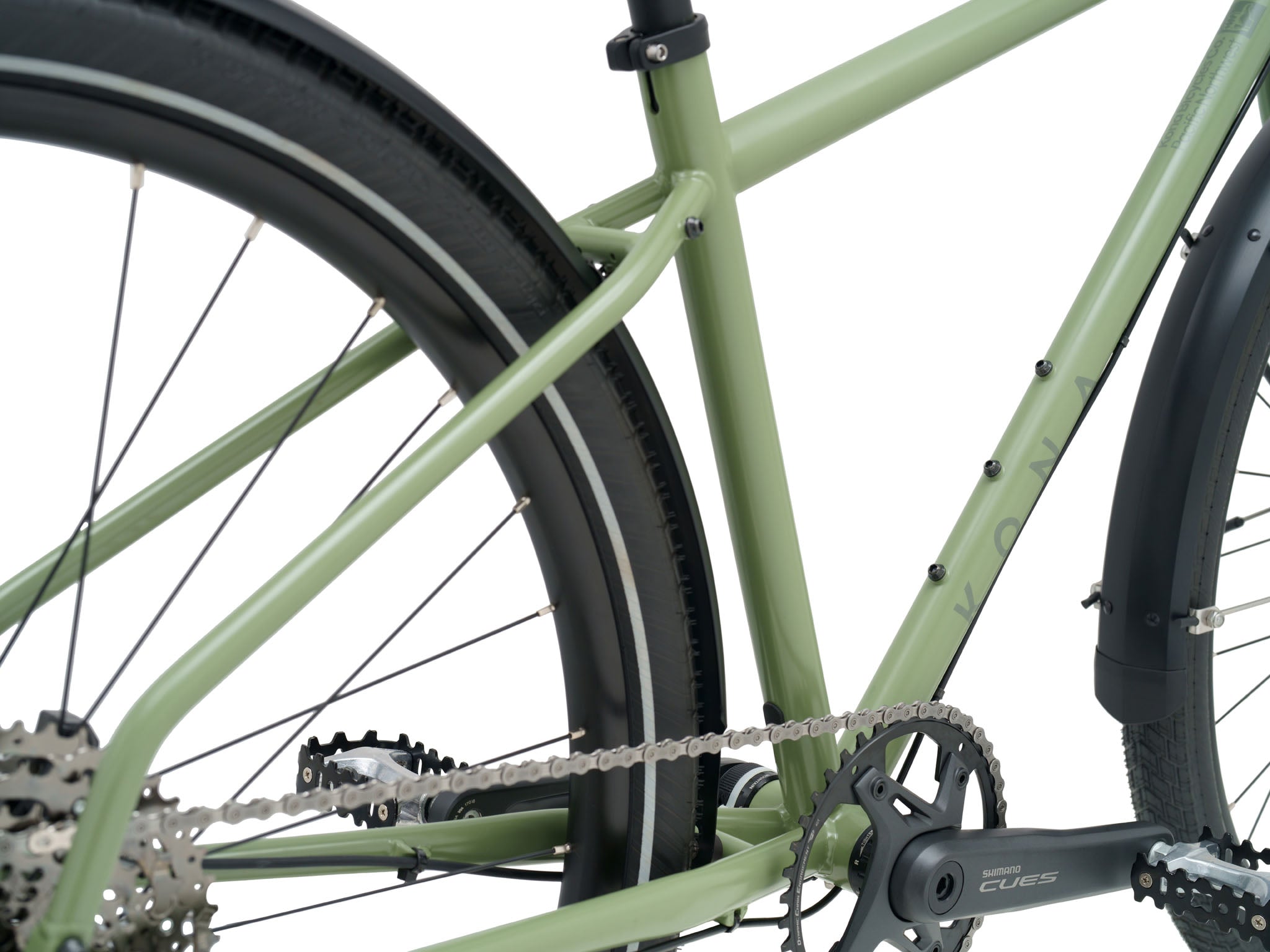

FRAME Kona Butted Cromoly
SIZES S, M, L, XL
REAR SHOCK n/a
FORK Kona Cromoly

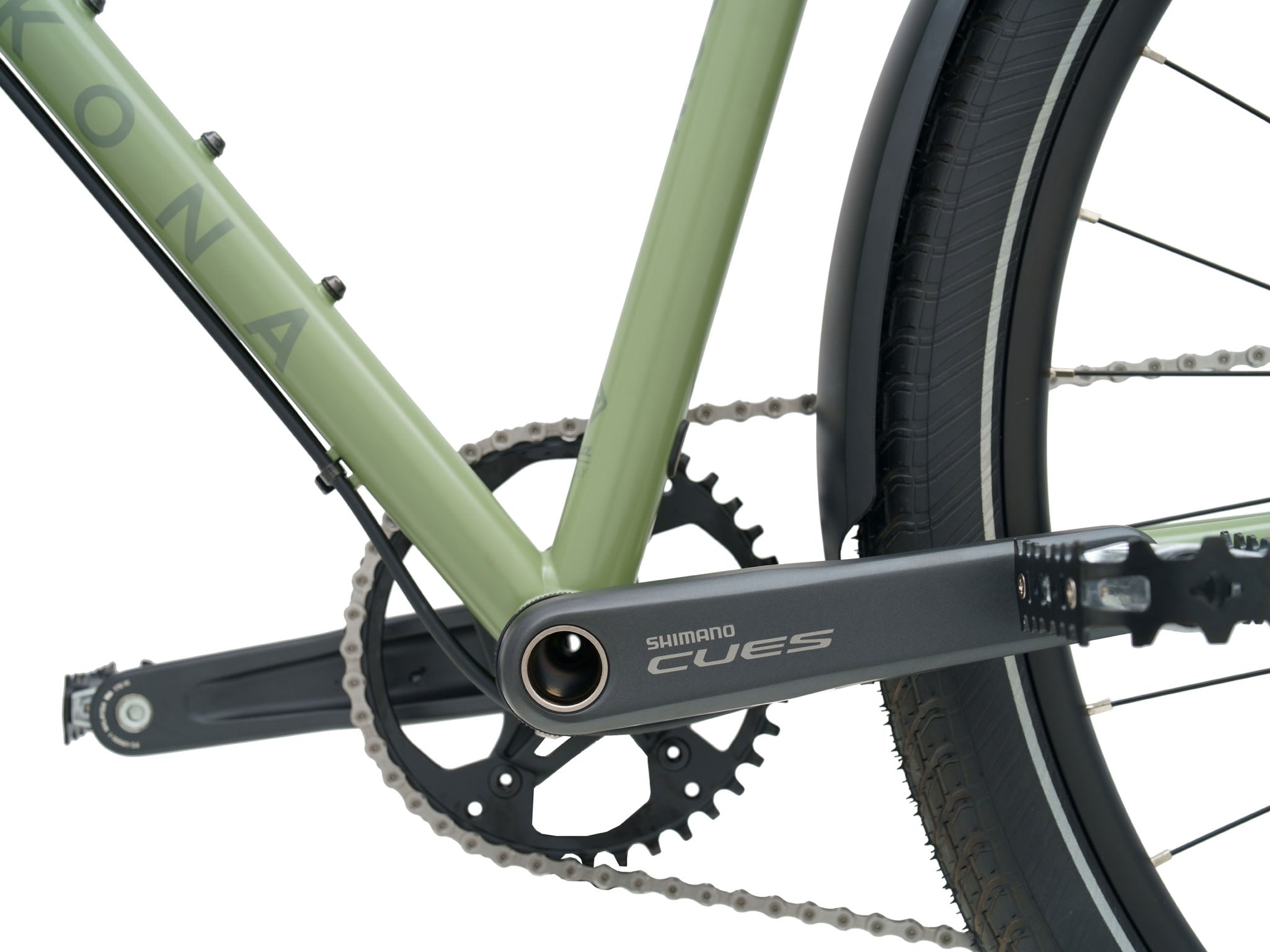

CRANKSET Shimano CUES 6000 40t / S-M 170mm / L-XL 175mm
BOTTOM BRACKET Shimano BSA 73mm
PEDALS Feimin Platform
CHAIN Shimano CUES LG500
CASSETTE Shimano CUES 4000 11-50t 11spd
CHAINGUIDE n/a
FRONT DERAILLEUR n/a
REAR DERAILLEUR Shimano CUES 6000
SHIFTER Shimano CUES 6000
BRAKE CALIPERS Shimano ALTUS
FRONT BRAKE ROTOR Shimano 180mm Centerlock
REAR BRAKE ROTOR Shimano 180mm Centerlock
BRAKE LEVERS Shimano ALTUS
HEADSET FSA Orbit No.1 EC34/EC34

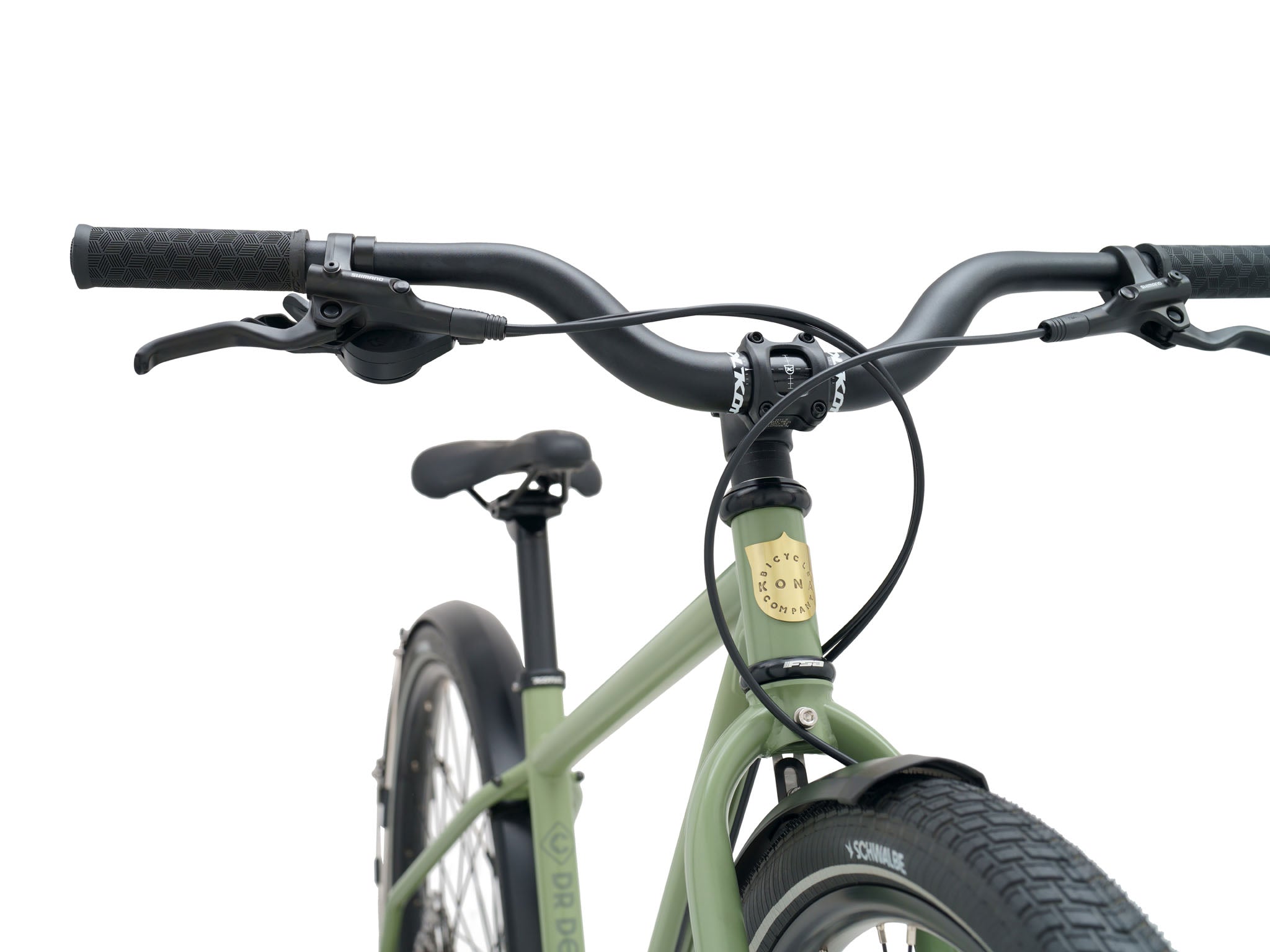

HANDLEBAR Kona Back 10º / Up 6º / Rise 70mm / Width 700mm
STEM Kona 31.8mm / Rise 3º / Length 45mm
SEATPOST Kona w/Offset 27.2mm / 375mm
SEAT CLAMP Kona Clamp 31.8mm
GRIPS Kona Key Grip

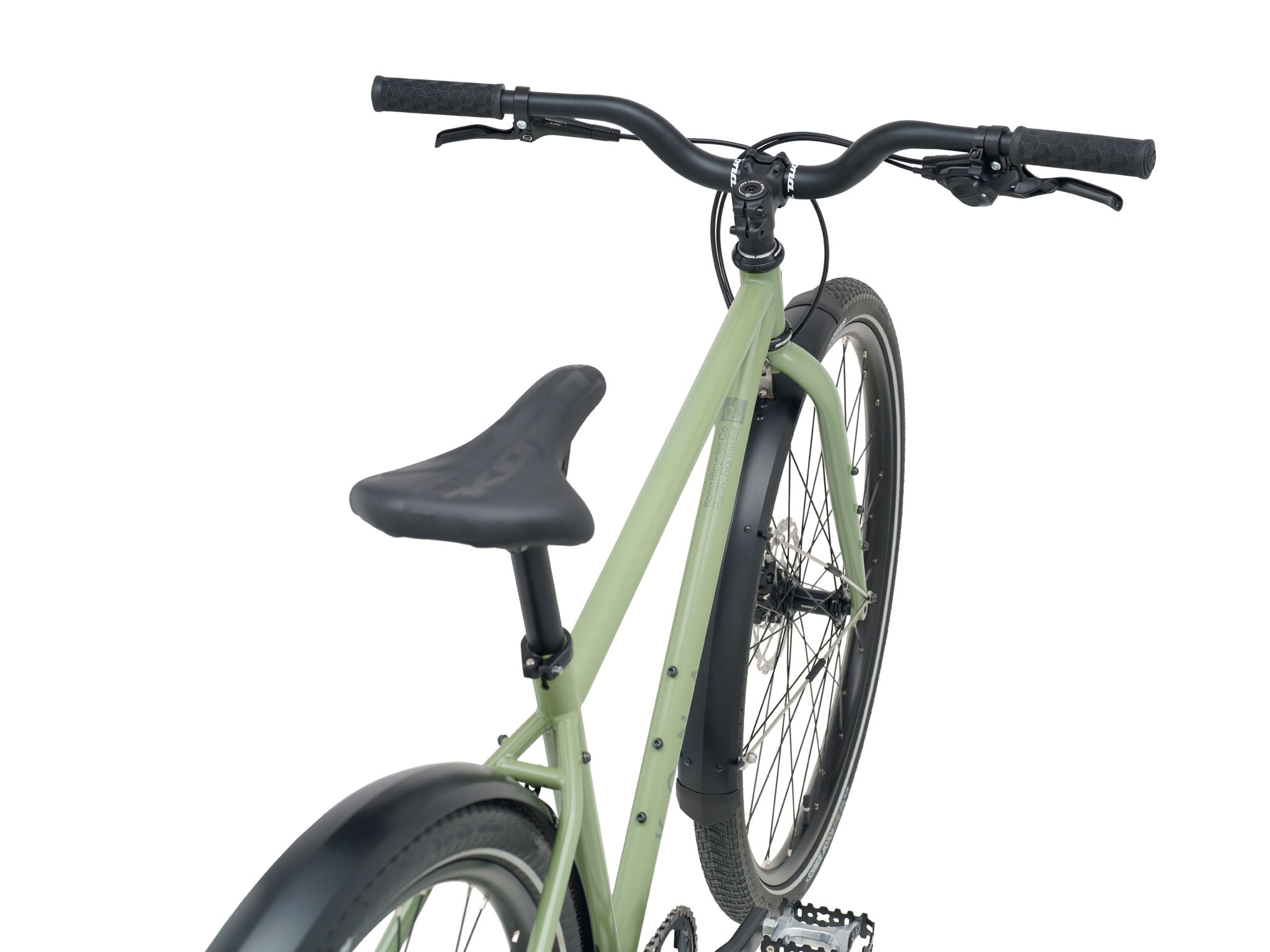

SADDLE Kona Commuter
FRONT HUB Shimano 12x100mm
REAR HUB Shimano 12x142mm
SPOKES Stainless 2.0mm Black
RIMS Double Wall Aluminum
FRONT TIRE WTB GROOV-E 29x2.0"
REAR TIRE WTB GROOV-E 29x2.0"
PAINT COLOR Satin Algae w/ Aspen Decals
EXTRAS Bell / Kickstand
All specifications are subject to change without notice.

GEOMETRY

  Size S M L XL
1 ST Length 420 470 520 570
2 TT Length 565 606 648 689
3 Reach 400 430 460 490
4 Stack 539 577 614 651
5 Standover 711 754 823 842
6 HT Angle 69 69 69 69
7 HT Length 80 120 160 200
8 ST Angle 73 73 73 73
9 CS Length 470 470 470 470
10 BB Drop 70 70 70 70
11 BB Height 295 295 295 295
12 Wheelbase 1098 1143 1187 1231
13 Front Center 638 682 726 770
14 Fork Length 430 430 430 430
15 Fork Offset 50 50 50 50
Bike Geometry

Sizing & Selection

Choosing the right bike size is essential for comfort, performance, and the best riding experience. To help you select the correct size:

  • Check Our Sizing and Fit Chart: Use the chart below to determine the size range that works best for your height and riding style.
  • Get Personalized Recommendations: Not sure which size to choose? Fill out our Sizing Form, and Kona staff will provide suggestions to help you find the perfect fit.

GRAVEL / DROP BAR / URBAN

Height/Inches Height/Metric Inseam/Inches Inseam/Metric Rove Libre Sutra/Ouroboros Dews CoCo
4'10"-5'1" 147-155cm 24”-27” 61-69cm 48cm 50cm 48cm N/A XS
5'0"-5'3" 152-160cm 26"-29" 66-74cm 48-50cm 50cm 48-50cm Small Small
5'2"-5'7" 157-170cm 27"-30" 69-76cm 48-52cm 50-52cm 48-52cm Small, Medium Small, Medium
5'6"-5'10" 168-178cm 29"-31" 74-79cm 52-54cm 52-54cm 52-54cm Medium Medium
5'9"-6'0" 175-183cm 30"-33" 76-84cm 52-56cm 54-56cm 54-56cm Medium, Large Medium, Large
5'11"-6'2" 180-188cm 32"-35" 81-89cm 54-58cm 54-58cm 54-58cm Large, XL Large
6'1"-6'5" 185-196cm 33"-36" 84-91cm 56-58cm 58cm 56-58cm XL N/A

MTB FULL SUSPENSION / HARDTAIL / SPLICE

Height/Inches Height/Metric Inseam/Inches Inseam/Metric MTB/XC Trail/Fat All Mountain/Enduro Splice
4'10"-5'1" 147-155cm 24”-27” 61-69cm XS XS Small
5'0"-5'3" 152-160cm 26"-29" 66-74cm Small Small Small
5'2"-5'7" 157-170cm 27"-30" 69-76cm Small, Medium Small, Medium Small, Medium
5'6"-5'10" 168-178cm 29"-31" 74-79cm Medium Medium Medium
5'9"-6'0" 175-183cm 30"-33" 76-84cm Medium, Large Medium, Large Medium, Large
5'11"-6'2" 180-188cm 32"-35" 81-89cm Large, XL Large, XL Large, XL
6'1"-6'5" 185-196cm 33"-36" 84-91cm Large, XL Large, XL Large, XL
