Ecoco
Tax included.
Not finding what you want here?
Contact your local Kona Dealer.

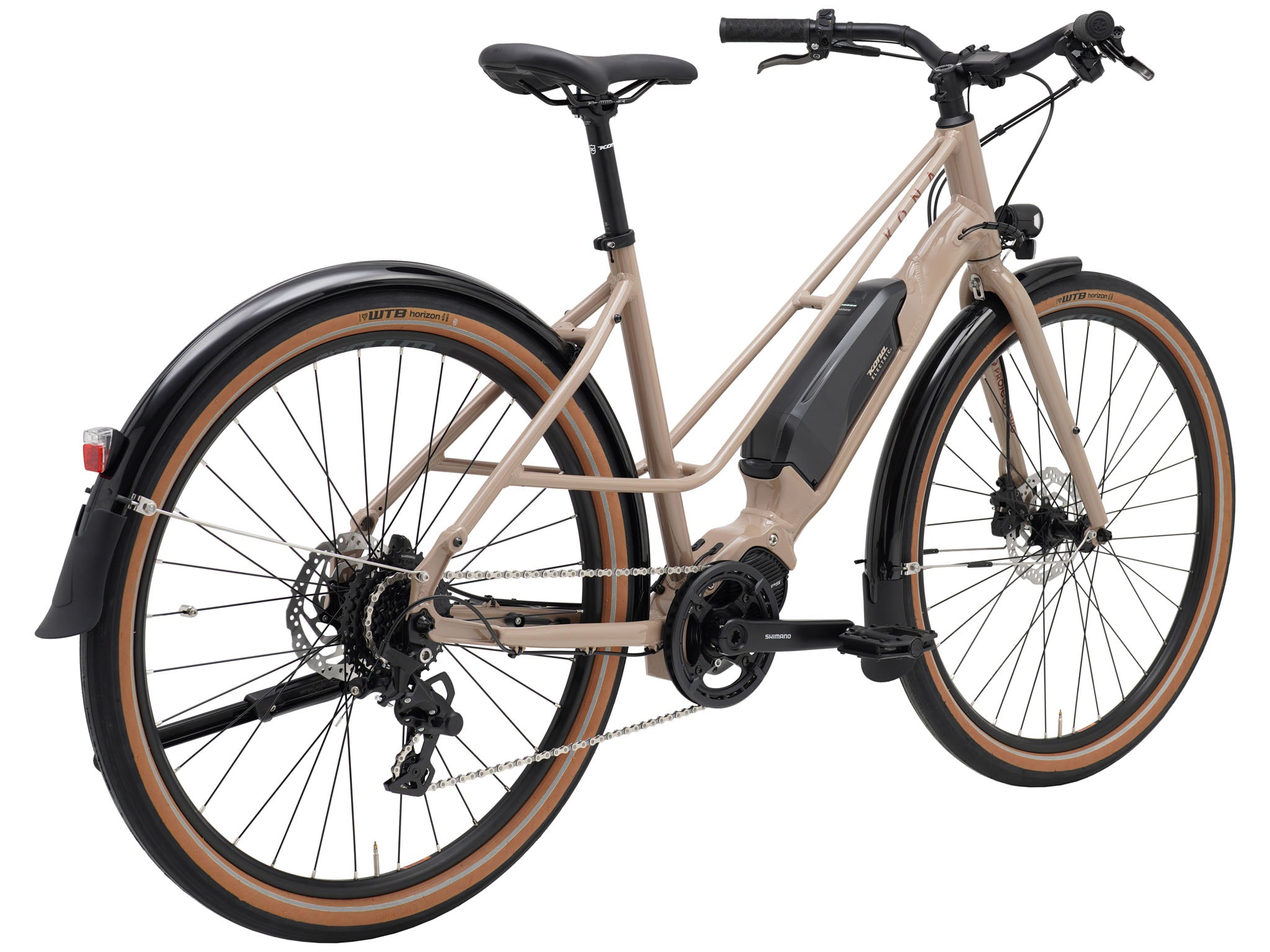

The Ecoco has been spotted alongside trendsetters all over the world. It makes running errands fun. It’s the perfect boardwalk beach cruiser and it doesn’t have to worry about fitting into a bathing suit. Its eye-catching paint on its low-slung step-through frame is a showstopper, and its Shimano E6100 motor ensures that you’ll make it to the top of that big hill in time to watch every single sunset. Dependable shifting and disc brakes will keep all the moving parts running smoothly. It comes with fenders, front and rear lights, and a kickstand. The only thing needed, is you!
SPECS & GEOMETRY
SPECIFICATIONS
| FRAME | Kona 6061 Aluminum Butted |
| SIZES | S, M, L |
| REAR SHOCK | n/a |
| FORK | Kona 6061 Aluminum |
| CRANKARMS | Shimano EN500 |
| CHAINRINGS | Shimano 38t |
| BOTTOM BRACKET | n/a |
| PEDALS | Feimin Platform |
| CHAIN | KMC eGlide |
| CASSETTE | Shimano CUES LG300 11-36t 9spd |
| CHAINGUIDE | n/a |
| FRONT DERAILLEUR | n/a |

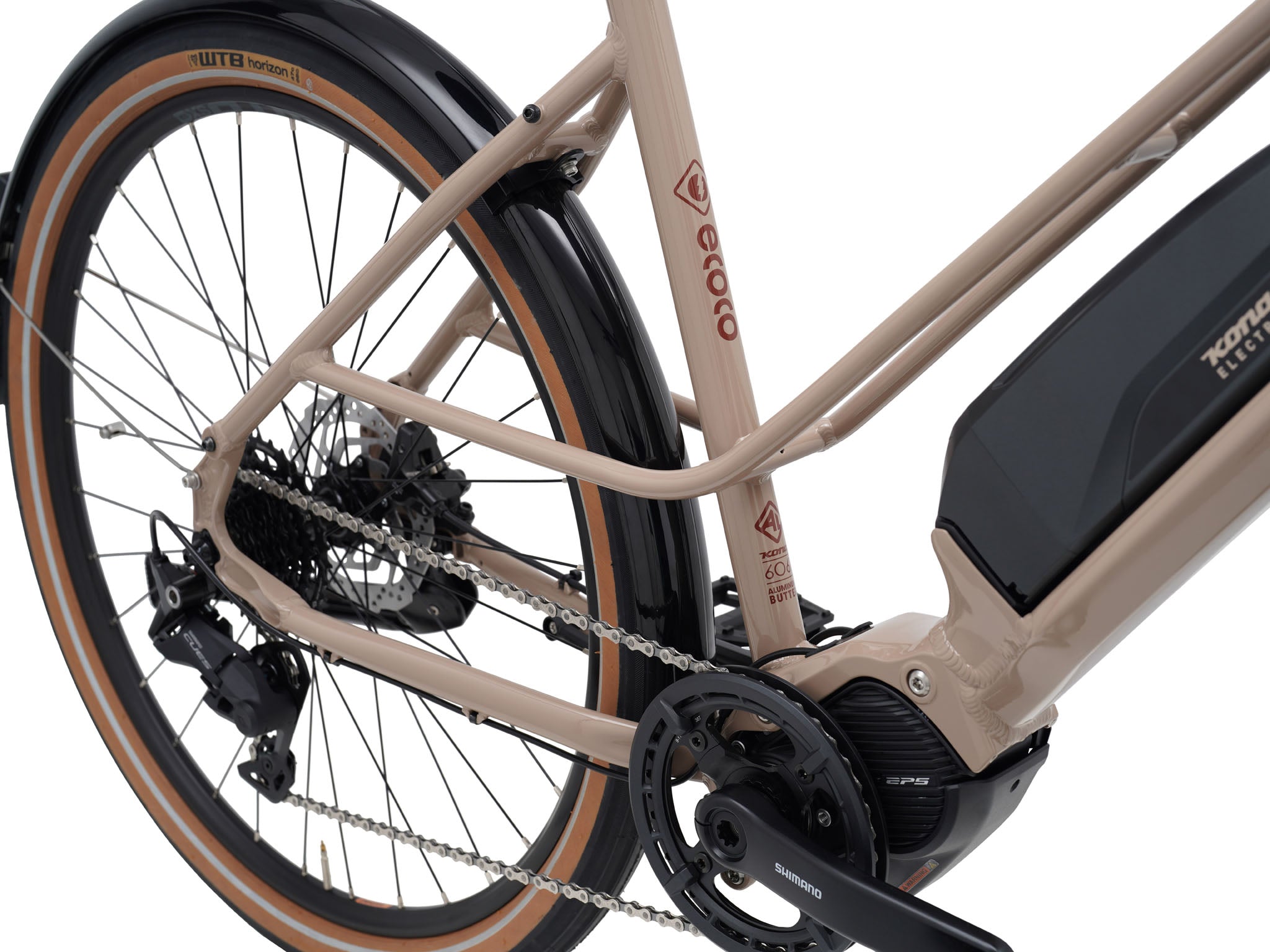

| REAR DERAILLEUR | Shimano RDU4010 |
| SHIFTER | Shimano CUES 4000 |
| BRAKE CALIPERS | Shimano MT401 |
| FRONT BRAKE ROTOR | Shimano 160mm Centerlock |
| REAR BRAKE ROTOR | Shimano 160mm Centerlock |
| BRAKE LEVERS | Shimano MT410 |
| HEADSET | Feimin ZS44/ZS44 |
| HANDLEBAR | Kona Back 38º / Rise 38mm / Width 640mm |
| STEM | Kona 31.8mm / Rise 6º / Length 60mm |
| SEATPOST | Kona Commuter 27.2mm / S-M 350mm / L 375mm |
| SEAT CLAMP | Kona Clamp 31.8mm |
| GRIPS | Kona Key Grip |
| SADDLE | Kona Commuter |
| FRONT HUB | Shimano 9x100mm |
| REAR HUB | Shimano 10x135mm |
| SPOKES | Stainless 2.0mm Black |
| RIMS | WTB SX19 |
| FRONT TIRE | WTB Horizon 650x47mm |
| REAR TIRE | WTB Horizon 650x47mm |

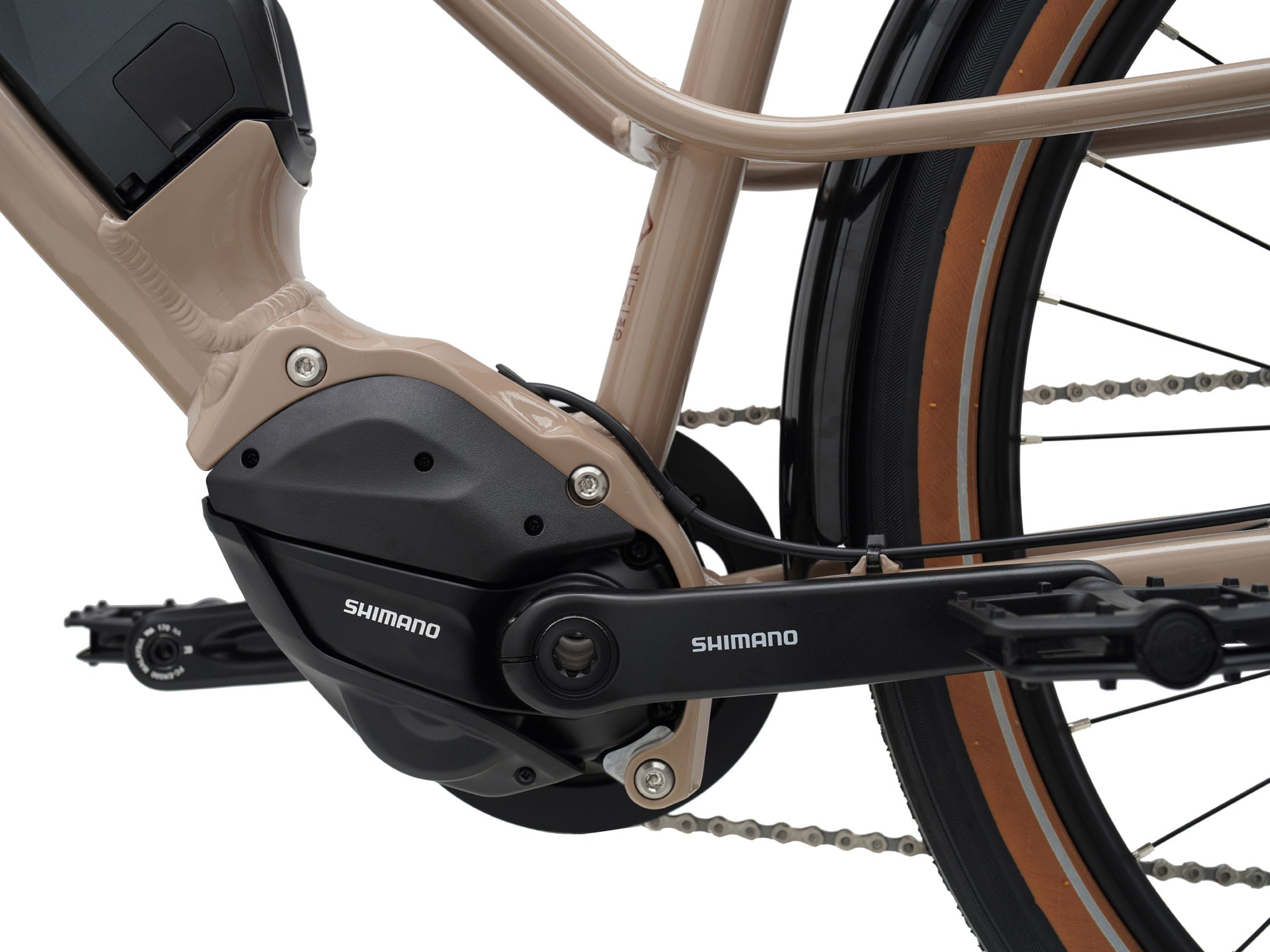

| DRIVE UNIT | Shimano DU-EP500 25kmh |
| BATTERY | Shimano 504Wh |
| DISPLAY | Shimano SC-EN600 |
| CHARGER | Shimano 1.8A (100-240V) |
| BATTERY LOCK | Abus |
| PAINT COLOR | Gloss Toffee w/ Leather Decals |
| EXTRAS | Fenders / Front & Rear Light / Kickstand |
GEOMETRY
| Size | S | M | L | |
| 1 | ST Length | 420 | 470 | 520 |
| 2 | TT Length | 551 | 596 | 635 |
| 3 | Reach | 397 | 422 | 438 |
| 4 | Stack | 573 | 606 | 644 |
| 5 | Standover | 584 | 584 | 591 |
| 6 | HT Angle | 70.0 | 70.0 | 70.0 |
| 7 | HT Length | 140 | 175 | 215 |
| 8 | ST Angle | 75.0 | 74.0 | 73.0 |
| 9 | CS Length | 450 | 450 | 450 |
| 10 | BB Drop | 70 | 70 | 70 |
| 11 | BB Height | 272 | 272 | 272 |
| 12 | Wheelbase | 1078 | 1115 | 1144 |
| 13 | Front Center | 637 | 674 | 703 |
| 14 | Fork Length | 409 | 409 | 409 |
| 15 | Fork Offset | 50 | 50 | 50 |
Sizing & Selection
Choosing the right bike size is essential for comfort, performance, and the best riding experience. To help you select the correct size:
- Check Our Sizing and Fit Chart: Use the chart below to determine the size range that works best for your height and riding style.
- Get Personalized Recommendations: Not sure which size to choose? Fill out our Sizing Form, and Kona staff will provide suggestions to help you find the perfect fit.
GRAVEL / DROP BAR / URBAN
| Height/Inches | Height/Metric | Inseam/Inches | Inseam/Metric | Rove | Libre | Sutra/Ouroboros | Dews | CoCo |
|---|---|---|---|---|---|---|---|---|
| 4'10"-5'1" | 147-155cm | 24”-27” | 61-69cm | 48cm | 50cm | 48cm | N/A | XS |
| 5'0"-5'3" | 152-160cm | 26"-29" | 66-74cm | 48-50cm | 50cm | 48-50cm | Small | Small |
| 5'2"-5'7" | 157-170cm | 27"-30" | 69-76cm | 48-52cm | 50-52cm | 48-52cm | Small, Medium | Small, Medium |
| 5'6"-5'10" | 168-178cm | 29"-31" | 74-79cm | 52-54cm | 52-54cm | 52-54cm | Medium | Medium |
| 5'9"-6'0" | 175-183cm | 30"-33" | 76-84cm | 52-56cm | 54-56cm | 54-56cm | Medium, Large | Medium, Large |
| 5'11"-6'2" | 180-188cm | 32"-35" | 81-89cm | 54-58cm | 54-58cm | 54-58cm | Large, XL | Large |
| 6'1"-6'5" | 185-196cm | 33"-36" | 84-91cm | 56-58cm | 58cm | 56-58cm | XL | N/A |
MTB FULL SUSPENSION / HARDTAIL / SPLICE
| Height/Inches | Height/Metric | Inseam/Inches | Inseam/Metric | MTB/XC Trail/Fat | All Mountain/Enduro | Splice |
|---|---|---|---|---|---|---|
| 4'10"-5'1" | 147-155cm | 24”-27” | 61-69cm | XS | XS | Small |
| 5'0"-5'3" | 152-160cm | 26"-29" | 66-74cm | Small | Small | Small |
| 5'2"-5'7" | 157-170cm | 27"-30" | 69-76cm | Small, Medium | Small, Medium | Small, Medium |
| 5'6"-5'10" | 168-178cm | 29"-31" | 74-79cm | Medium | Medium | Medium |
| 5'9"-6'0" | 175-183cm | 30"-33" | 76-84cm | Medium, Large | Medium, Large | Medium, Large |
| 5'11"-6'2" | 180-188cm | 32"-35" | 81-89cm | Large, XL | Large, XL | Large, XL |
| 6'1"-6'5" | 185-196cm | 33"-36" | 84-91cm | Large, XL | Large, XL | Large, XL |
Electric Commuter
The world seems to have ushered in a new era of car-free living. With more cities closing down roads to cars, electric bikes are taking over the pavement all around the world. We offer several electric commuter bikes that will make you wonder why you ever needed a car for commuting in the first place.
Three models, three styles, one hell of a good time
The Dew-E DL is built for the commuter with discerning taste. Tubeless, puncture-resistant tires, front and rear Busch & Müller lights, front and rear fenders, and a 10-speed Shimano drivetrain provide a reliable ride in any conditions.
The Dew-E DL features a Shimano e6100 motor powered by a fully-integrated 504 WH battery.
The Dew-E DL has a Kona Rove Carbon fork with three bosses capable of carrying heavy loads.

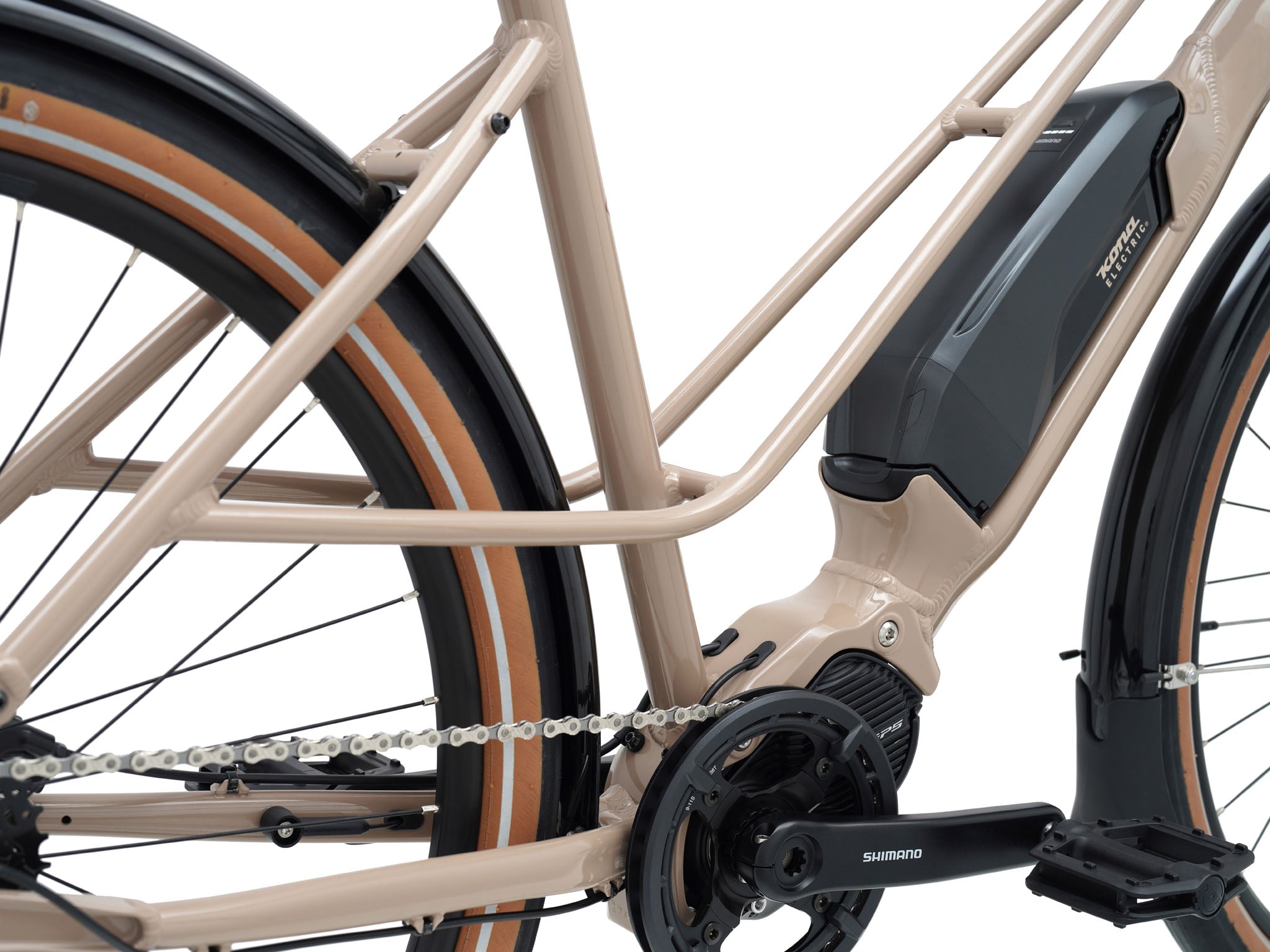

The Dew-E and Ecoco are easy on the eyes, ready to cruise up the steepest of hills, and make light work of your most tiring commutes. Both bikes feature a semi-integrated 504 Wh battery that powers a Shimano E6100 motor. With the Dew-E and the Ecoco, a little pedaling goes a long way.
Both the Dew-E and the Ecoco feature front and rear fenders and lights, keeping you safe and clean on your commute.
Both bikes rely on a sturdy integrated kickstand.

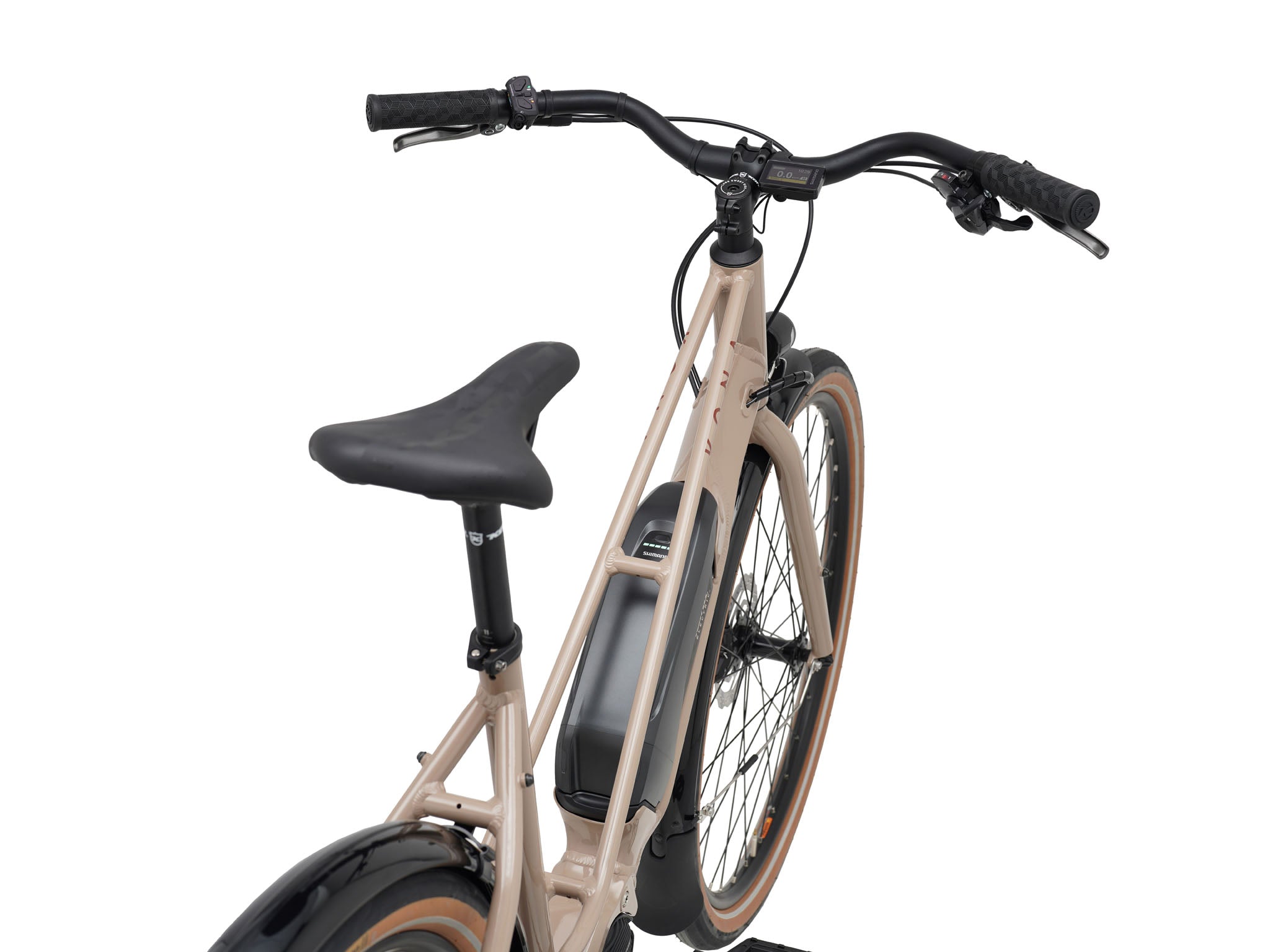

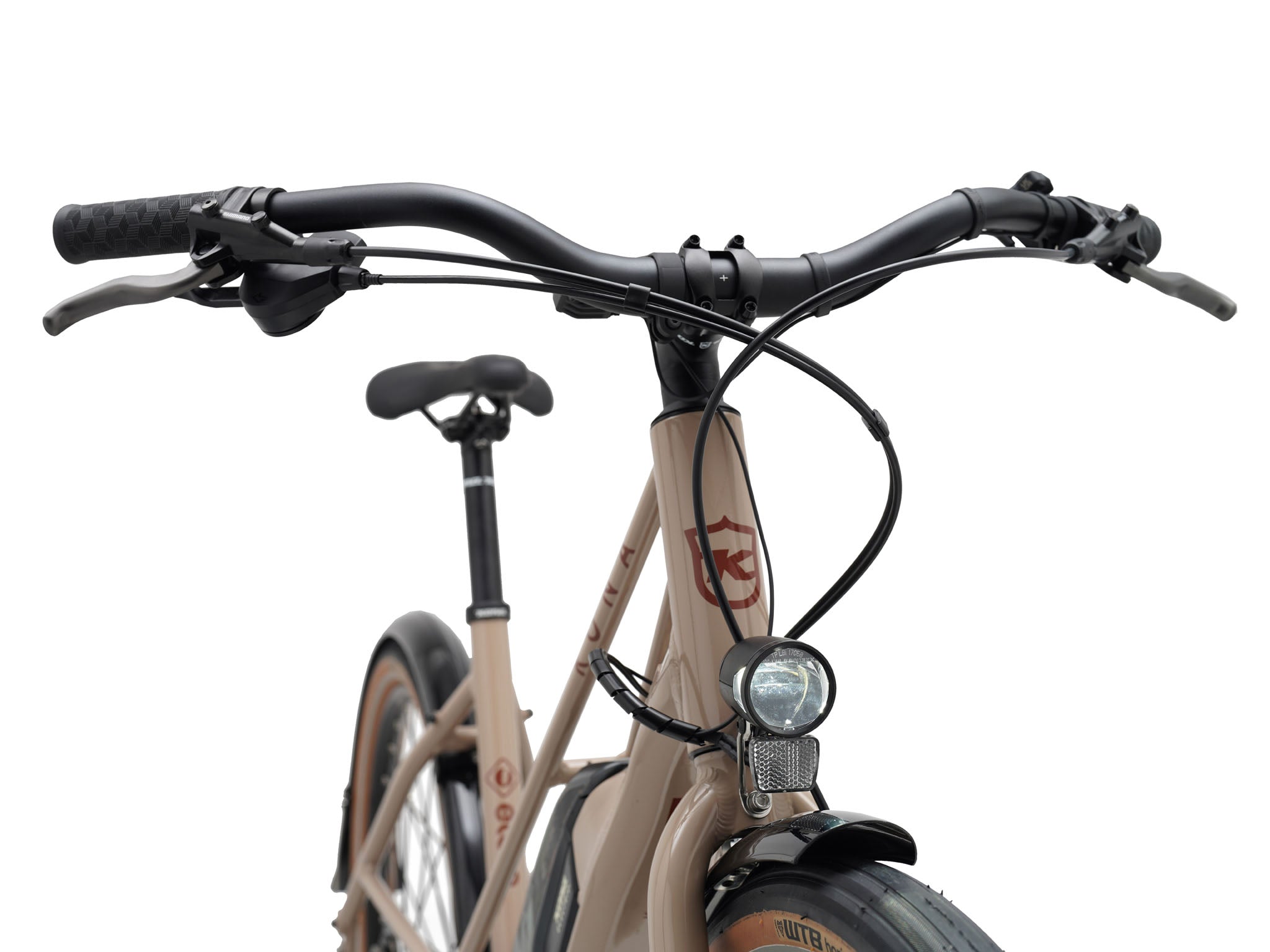

The Ecoco uses swept back bars for a more upright riding position. The bars easily accept a front basket to help haul groceries or a six pack.
WTB Horizon Comp Puncture Protect tires on both the Dew-e and Ecoco
