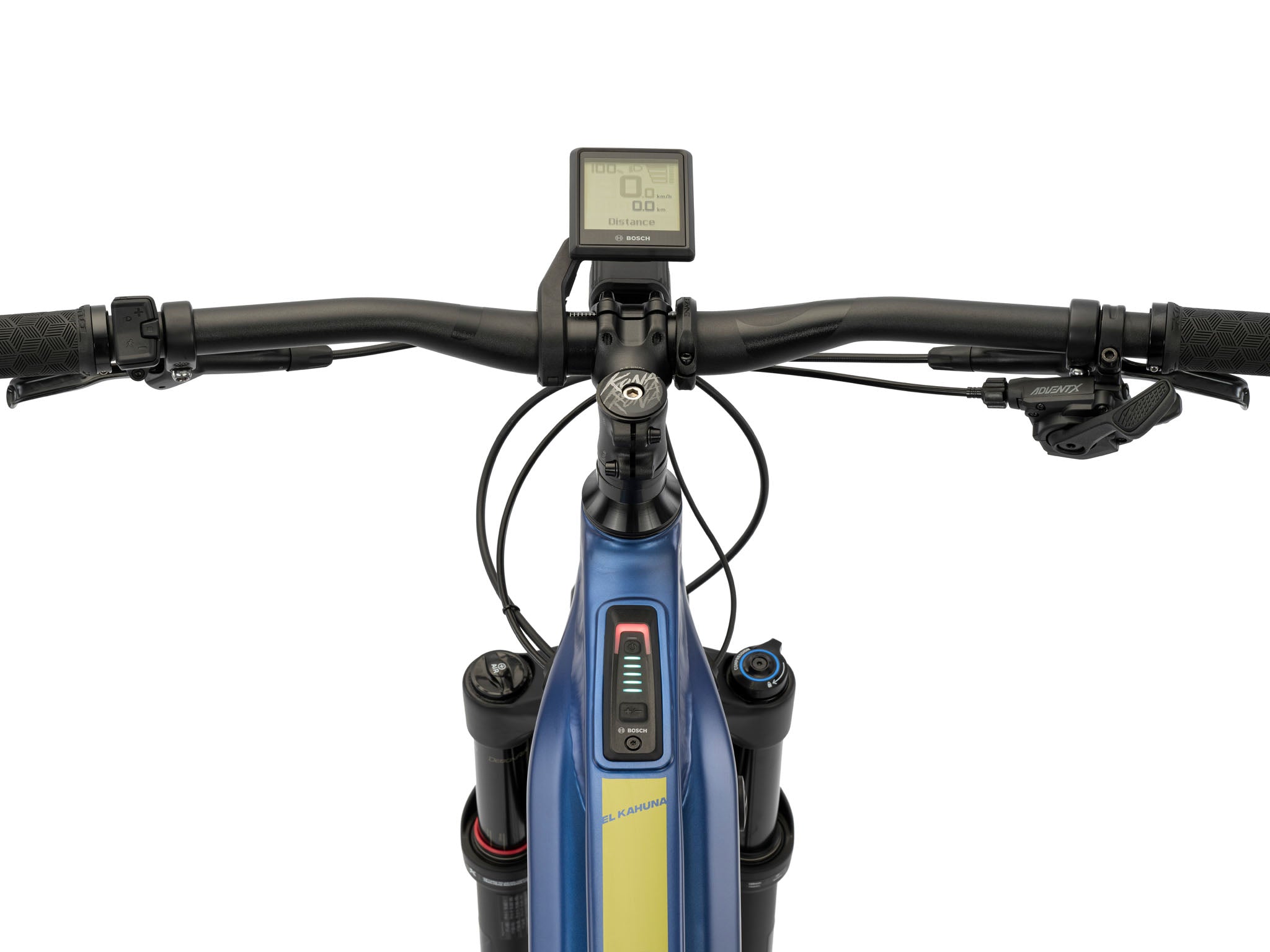

El Kahuna
Sale price€4.999,00 EUR
Regular price€0,00 EUR (/)

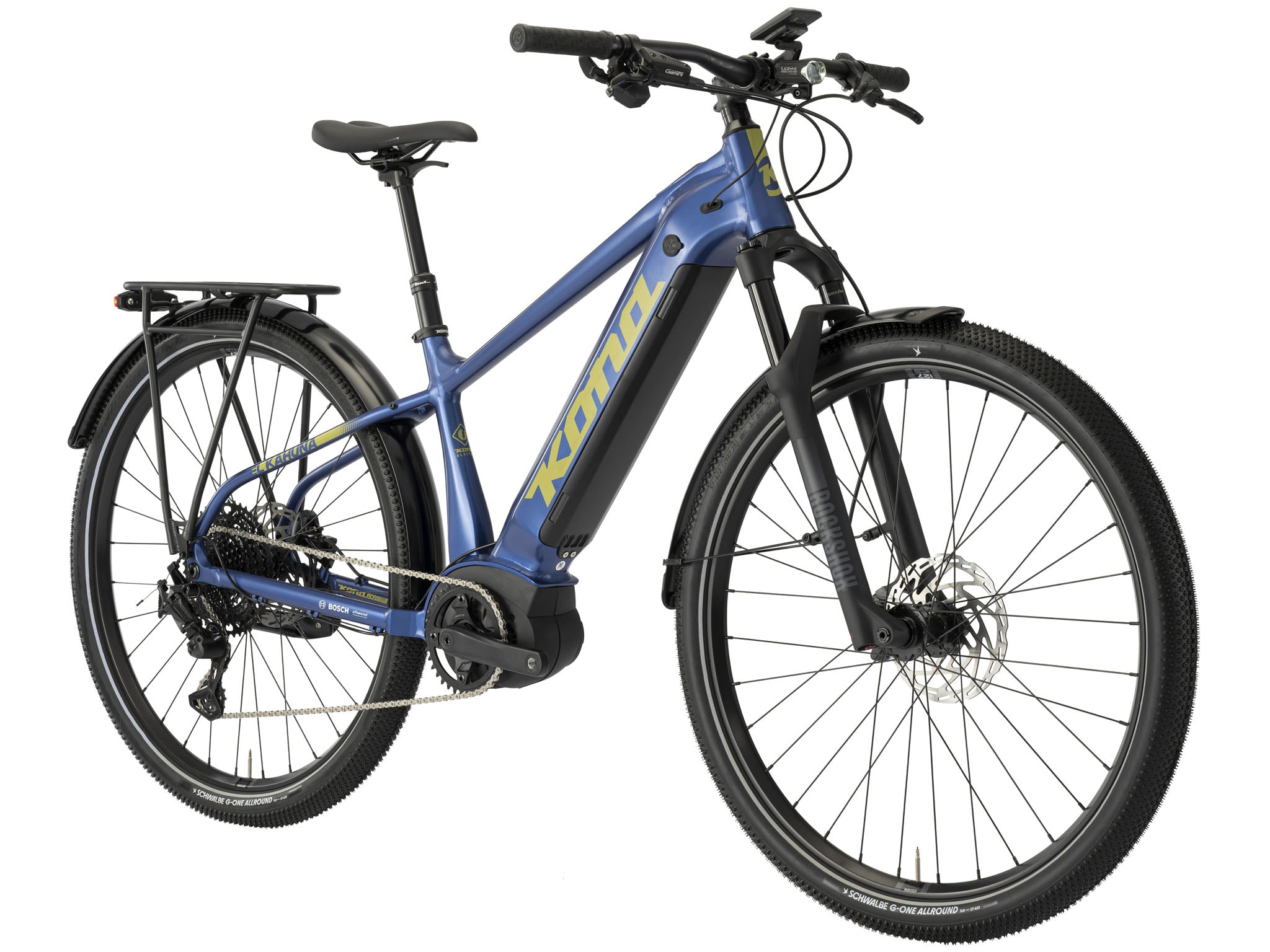

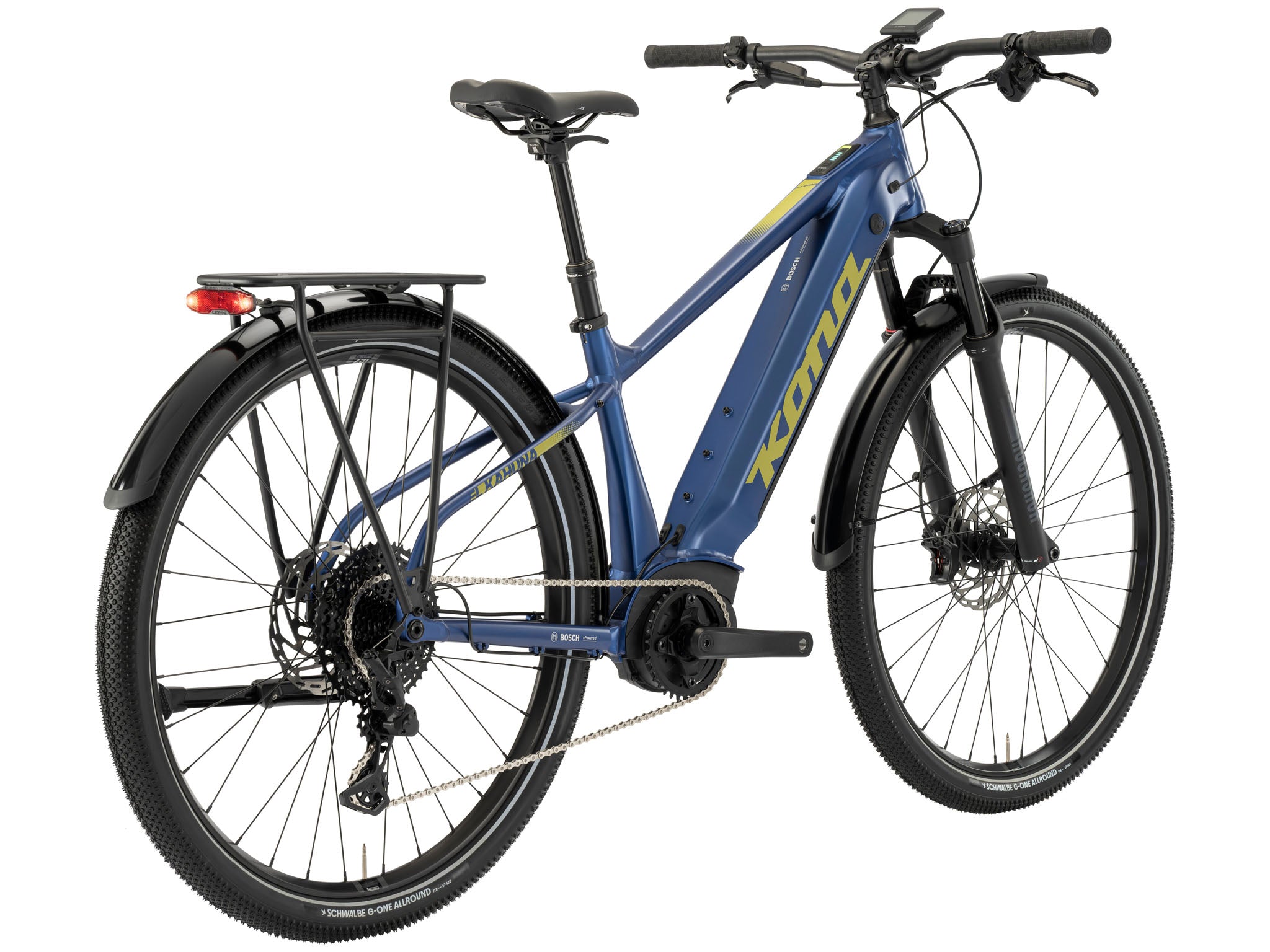

The El Kahuna is your go-anywhere, do-everything, multi-purpose hardtail—with a quiet boost. We’ve updated our best-selling e-MTB with the smooth, responsive Bosch Performance Line motor, delivering confidence on climbs and calm on commutes. An internal 625Wh battery keeps the lines clean, while a 100mm fork and 29” wheels roll easily between campgrounds, gravel, and everyday errands. Whether you’re chasing bike paths or hauling groceries, the El Kahuna is the perfect all-rounder.
SPECS & GEOMETRY
SPECIFICATIONS
| FRAME | Kona 6061 Aluminum Butted |
| SIZES | S, M, L, XL |
| REAR SHOCK | n/a |
| FORK | RockShox Recon Gold 100mm Debonair |
| CRANKSET | Prowheel 165mm 36t 4-bolt 104mm |
| BOTTOM BRACKET | n/a |
| PEDALS | n/a |
| CHAIN | KMC 10 spd |
| CASSETTE | Microshift Advent X 11-48t 10spd HG |
| CHAINGUIDE | n/a |
| FRONT DERAILLEUR | n/a |
| REAR DERAILLEUR | Microshift Advent X |
| SHIFTER | Microshift Advent X |
| BRAKE CALIPERS | Tektro Gemini M530 4-piston |
| FRONT BRAKE ROTOR | Tektro 180mm 6B 2.3mm |
| REAR BRAKE ROTOR | Tektro 180mm 6B 2.3mm |
| BRAKE LEVERS | Tektro Gemini M530 |
| HEADSET | Feimin ZS44/ZS56 |

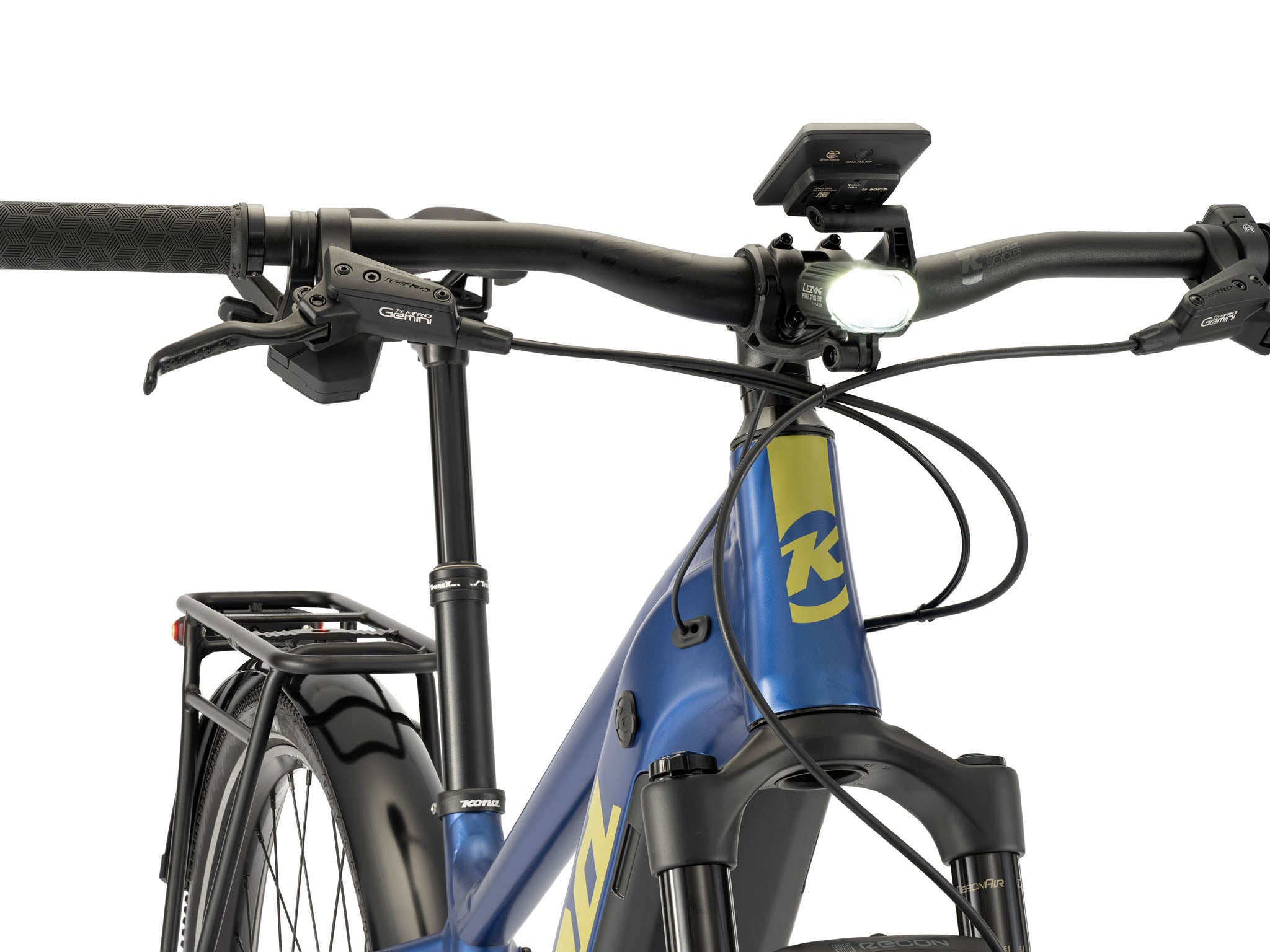

| HANDLEBAR | Kona XC/BC Back 9º / Up 5º / Rise 22mm / Width 750mm |
| STEM | Kona XC 31.8mm / Rise 6º / Length: S-M 50mm / L-XL 60mm |
| SEATPOST | TranzX Dropper 31.6mm / Travel: S 100mm / M 120mm / L-XL 150mm |
| SEAT CLAMP | Kona Clamp 34.9mm |
| GRIPS | Kona Key Grip Lock-on |
| SADDLE | WTB Volt Medium |
| FRONT HUB | Formula 15x110mm |
| REAR HUB | Formula 12x148mm HG |
| SPOKES | Stainless 2.0mm Black |
| RIMS | WTB KOM Team i27 TCS |
| FRONT TIRE | Schwalbe G-One ALLROUND TLE 29x2.25" |
| REAR TIRE | Schwalbe G-One ALLROUND TLE 29x2.25" |

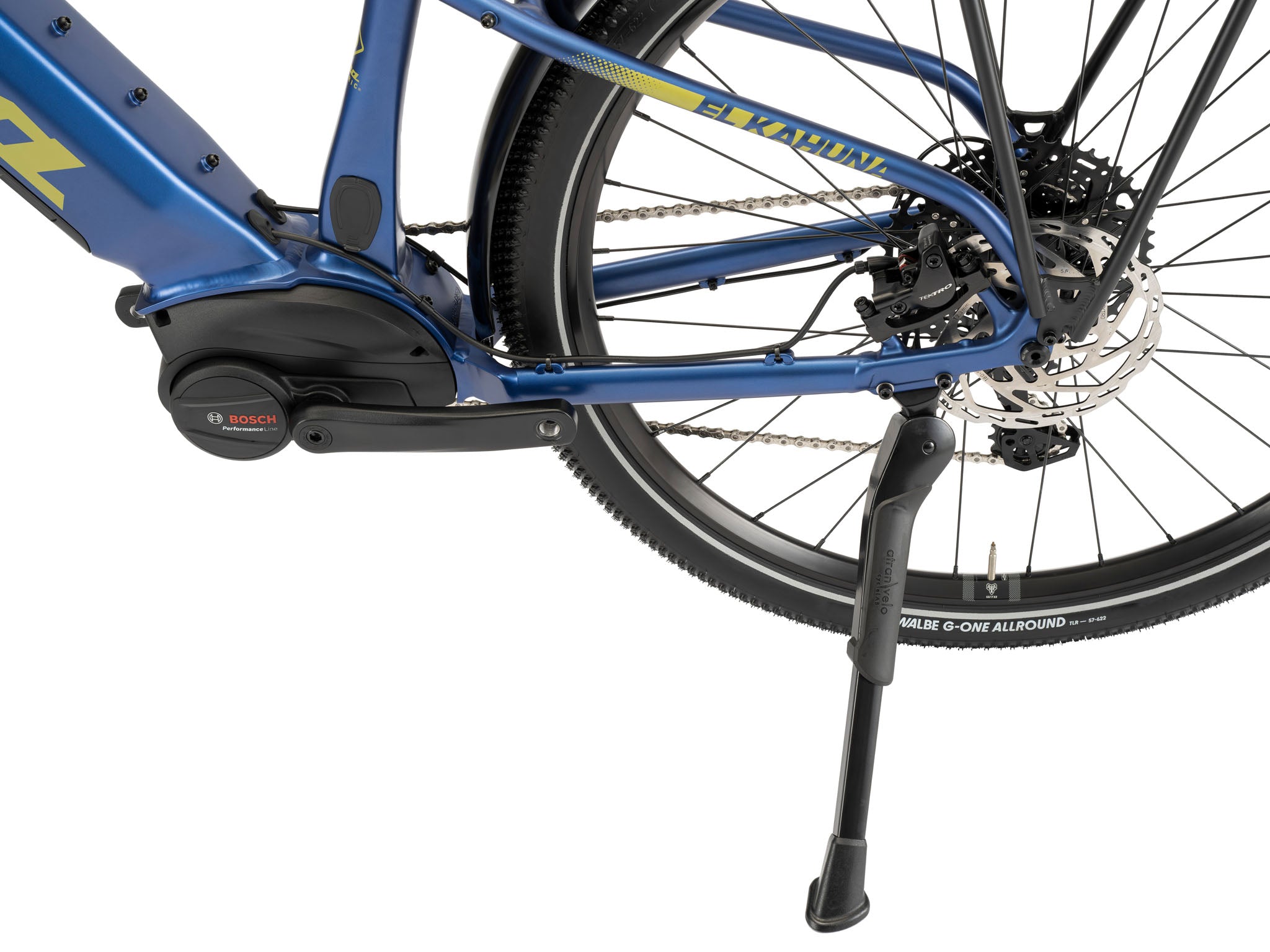

| DRIVE UNIT | Bosch Performance Line 25kmh |
| BATTERY | Bosch PowerTube 625Wh / Bosch PowerMore 250Wh |
| DISPLAY | Bosch Intuvia 100 |
| CHARGER | Bosch 2A (230V) |
| BATTERY LOCK | Abus T82 |
| PAINT COLOR | Satin Metallic Lazuli w/ Olive Oil Decals |

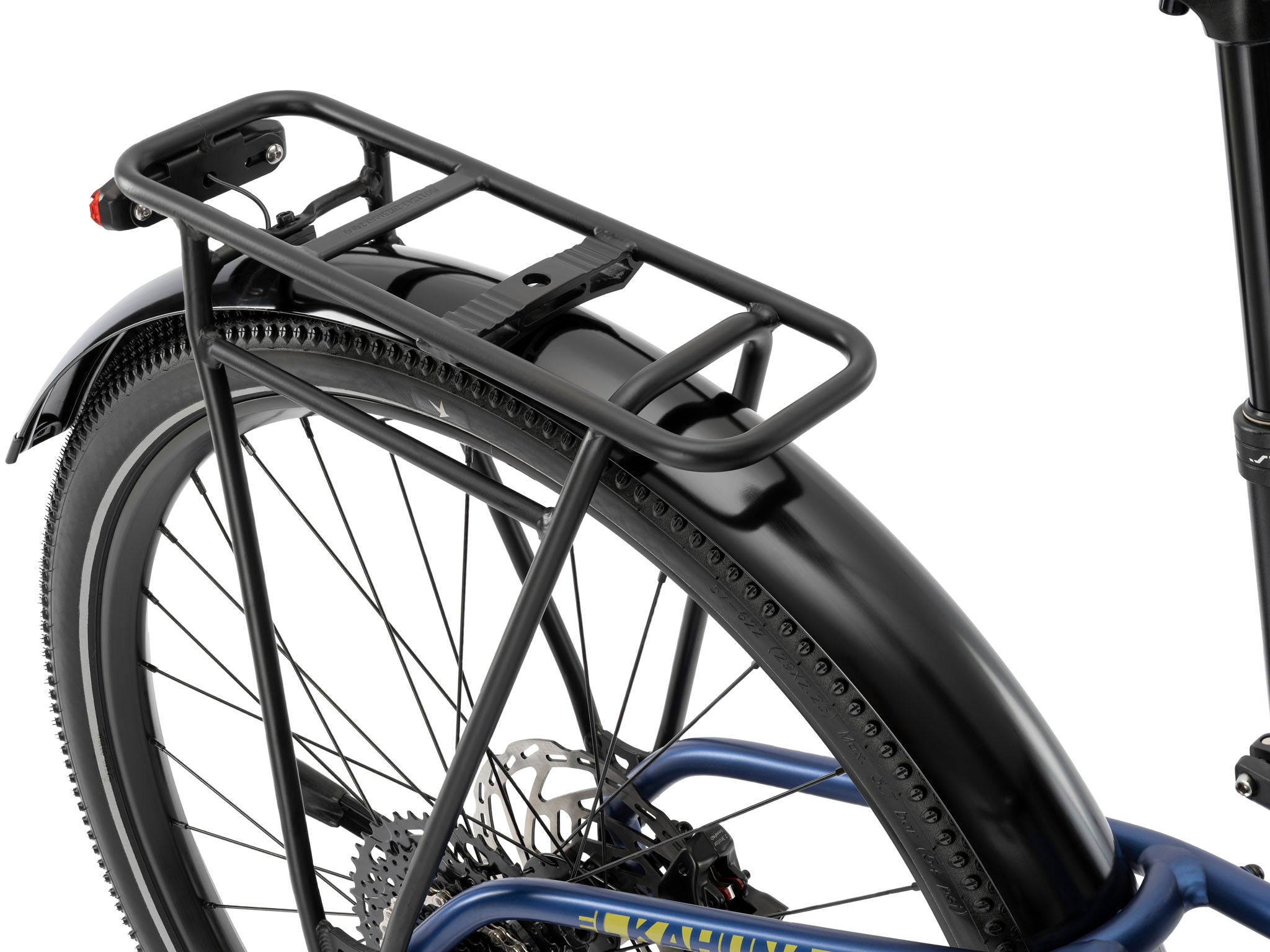

| EXTRAS | Rear Rack / Fenders / Front and Rear Lezyne Lights / Kickstand |
All specifications are subject to change without notice.
GEOMETRY
| Size | S | M | L | XL | |
| 1 | ST Length | 370 | 420 | 470 | 530 |
| 2 | TT Length | 588 | 613 | 640 | 672 |
| 3 | Reach | 404 | 428 | 453 | 484 |
| 4 | Stack | 642 | 646 | 651 | 656 |
| 5 | Standover | 742 | 750 | 760 | 773 |
| 6 | HT Angle | 69 | 69 | 69 | 69 |
| 7 | HT Length | 125 | 130 | 135 | 140 |
| 8 | ST Angle | 74 | 74 | 74 | 74 |
| 9 | CS Length | 495 | 495 | 495 | 495 |
| 10 | BB Drop | 60 | 60 | 60 | 60 |
| 11 | BB Height | 315 | 315 | 315 | 315 |
| 12 | Wheelbase | 1166 | 1192 | 1218 | 1251 |
| 13 | Front Center | 677 | 703 | 730 | 762 |
| 14 | Fork Length | 512 | 512 | 512 | 512 |
| 15 | Fork Offset | 44 | 44 | 44 | 44 |
Sizing & Selection
Choosing the right bike size is essential for comfort, performance, and the best riding experience. To help you select the correct size:
- Check Our Sizing and Fit Chart: Use the chart below to determine the size range that works best for your height and riding style.
- Get Personalized Recommendations: Not sure which size to choose? Fill out our Sizing Form, and Kona staff will provide suggestions to help you find the perfect fit.
GRAVEL / DROP BAR / URBAN
| Height/Inches | Height/Metric | Inseam/Inches | Inseam/Metric | Rove | Libre | Sutra/Ouroboros | Dews | CoCo |
|---|---|---|---|---|---|---|---|---|
| 4'10"-5'1" | 147-155cm | 24”-27” | 61-69cm | 48cm | 50cm | 48cm | N/A | XS |
| 5'0"-5'3" | 152-160cm | 26"-29" | 66-74cm | 48-50cm | 50cm | 48-50cm | Small | Small |
| 5'2"-5'7" | 157-170cm | 27"-30" | 69-76cm | 48-52cm | 50-52cm | 48-52cm | Small, Medium | Small, Medium |
| 5'6"-5'10" | 168-178cm | 29"-31" | 74-79cm | 52-54cm | 52-54cm | 52-54cm | Medium | Medium |
| 5'9"-6'0" | 175-183cm | 30"-33" | 76-84cm | 52-56cm | 54-56cm | 54-56cm | Medium, Large | Medium, Large |
| 5'11"-6'2" | 180-188cm | 32"-35" | 81-89cm | 54-58cm | 54-58cm | 54-58cm | Large, XL | Large |
| 6'1"-6'5" | 185-196cm | 33"-36" | 84-91cm | 56-58cm | 58cm | 56-58cm | XL | N/A |
MTB FULL SUSPENSION / HARDTAIL / SPLICE
| Height/Inches | Height/Metric | Inseam/Inches | Inseam/Metric | MTB/XC Trail/Fat | All Mountain/Enduro | Splice |
|---|---|---|---|---|---|---|
| 4'10"-5'1" | 147-155cm | 24”-27” | 61-69cm | XS | XS | Small |
| 5'0"-5'3" | 152-160cm | 26"-29" | 66-74cm | Small | Small | Small |
| 5'2"-5'7" | 157-170cm | 27"-30" | 69-76cm | Small, Medium | Small, Medium | Small, Medium |
| 5'6"-5'10" | 168-178cm | 29"-31" | 74-79cm | Medium | Medium | Medium |
| 5'9"-6'0" | 175-183cm | 30"-33" | 76-84cm | Medium, Large | Medium, Large | Medium, Large |
| 5'11"-6'2" | 180-188cm | 32"-35" | 81-89cm | Large, XL | Large, XL | Large, XL |
| 6'1"-6'5" | 185-196cm | 33"-36" | 84-91cm | Large, XL | Large, XL | Large, XL |
