Fire Mountain
Tax included.
Not finding what you want here?
Contact your local Kona Dealer.

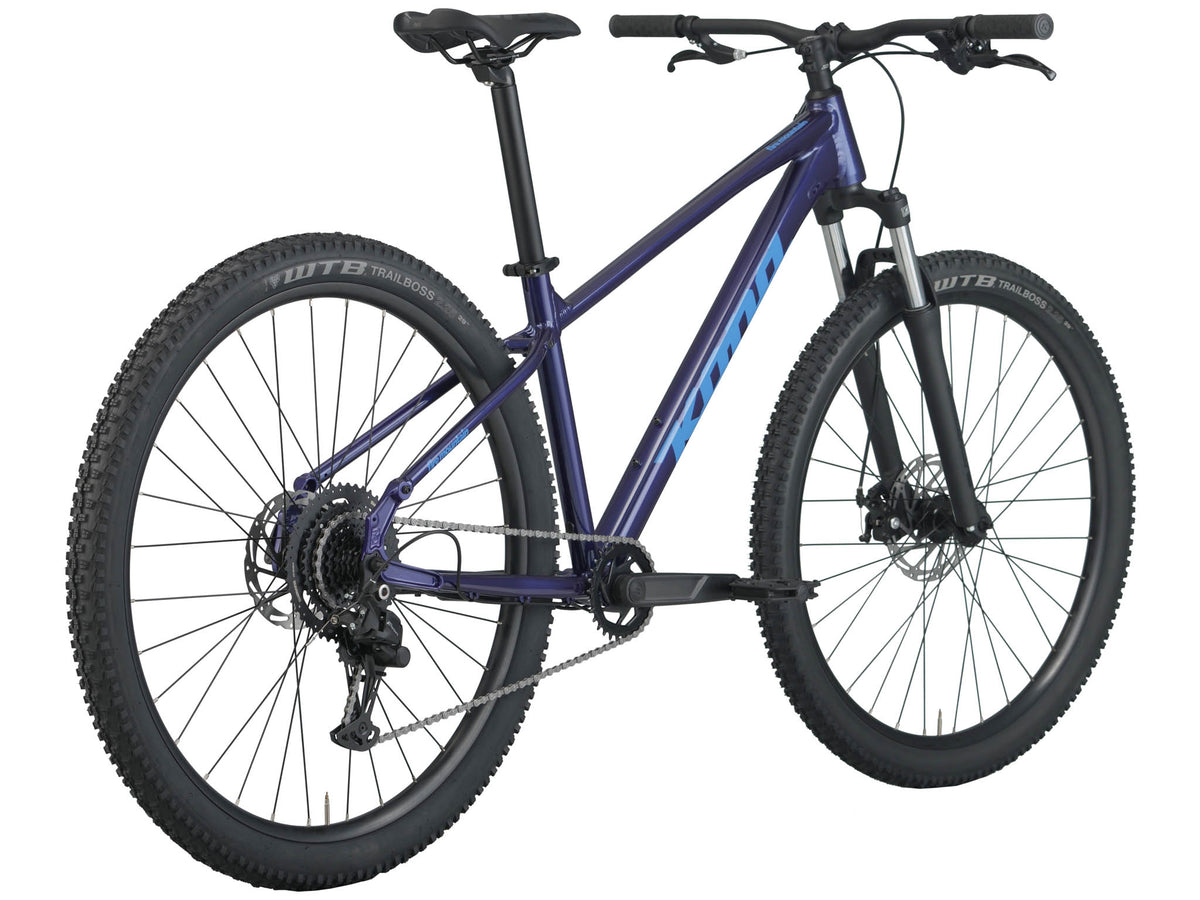

The Fire Mountain is an affordable hardtail mountain bike built for first trails, growing confidence, and the moment a casual ride becomes a full blown habit. Born from Kona’s Pacific Northwest mountain bike heritage, it pairs a 100mm suspension fork with a dependable 8 speed drivetrain and mechanical disc brakes to keep rough terrain, loose dirt, and unpredictable conditions manageable. Size specific wheels give riders a confident fit across the range, with 26” wheels on the XS, 27.5” wheels on the S, and 29” wheels on sizes M through XL. Consider it your introduction to mountain biking by trial, trail, and fire. The mountains are calling, and this is where the origin story begins.
SPECS & GEOMETRY
SPECIFICATIONS
| FRAME | Kona 6061 Aluminum Butted |
| SIZES | XS, S, M, L, XL |
| REAR SHOCK | n/a |
| FORK | SR/Suntour XCE28 Coil 100mm |
| CRANKSET | Prowheel EPRO-MD26 30t / Length XS-S 165mm / M-XL 170mm |
| BOTTOM BRACKET | Feimin BSA 73 |
| PEDALS | Kona JS2 |
| CHAIN | KMC Z8.3 |
| CASSETTE | Shimano ESSA HG300 11-45t 8spd |
| CHAINGUIDE | n/a |
| FRONT DERAILLEUR | n/a |
| REAR DERAILLEUR | Microshift Advent |
| SHIFTERS | Shimano ALTUS |
| BRAKE CALIPERS | Tektro M280 2-piston |
| FRONT BRAKE ROTOR | Tektro 180mm 6B 1.8mm |
| REAR BRAKE ROTOR | Tektro 160mm 6B 1.8mm |
| BRAKE LEVERS | Tektro CL-330RS Mechanical |
| HEADSET | Feimin ZS44/ZS56 |
| HANDLEBAR | Kona 31.8mm / Back 6º / Rise 20mm / Width XS-S 740mm / M-XL 780mm |
| STEM | Kona 31.8mm / Rise 7º / Length XS-M 40mm / L-XL 50mm |
| SEATPOST | Kona w/Offset 31.6mm / Length XS-M 350mm / L-XL 400mm |
| SEAT CLAMP | Kona Clamp 34.9mm |
| GRIPS | Kona Key Grip |
| SADDLE | Kona MTB |
| FRONT HUB | Joytech 9x100mm |
| REAR HUB | Joytech 10x135mm |
| SPOKES | Stainless 2.0mm Black |
| RIMS | Double Wall Aluminum |
| FRONT TIRE | WTB Ranger XS 26x2.25" / WTB Trail Boss S 27x2.25" / M-XL 29x2.25" |
| REAR TIRE | WTB Ranger XS 26x2.25" / WTB Trail Boss S 27x2.25" / M-XL 29x2.25" |
| PAINT COLOR | Gloss Fancy Karman w/ Electric Blue Decals |
GEOMETRY
| Size | XS | S | M | L | XL | |
| 1 | ST Length | 365 | 380 | 410 | 450 | 490 |
| 2 | TT Length | 560 | 587 | 622 | 650 | 687 |
| 3 | Reach | 410 | 430 | 455 | 480 | 515 |
| 4 | Stack | 561 | 586 | 624 | 633 | 642 |
| 5 | Standover | 679 | 699 | 728 | 726 | 721 |
| 6 | HT Angle | 67.5 | 67.5 | 67.5 | 67.5 | 67.5 |
| 7 | HT Length | 100 | 110 | 120 | 130 | 140 |
| 8 | ST Angle | 75 | 75 | 75 | 75 | 75 |
| 9 | CS Length | 435 | 435 | 450 | 450 | 450 |
| 10 | BB Drop | 30 | 45 | 60 | 60 | 60 |
| 11 | BB Height | 305 | 310 | 315 | 315 | 315 |
| 12 | Wheelbase | 1110 | 1132 | 1190 | 1219 | 1257 |
| 13 | Front Center | 676 | 701 | 746 | 755 | 814 |
| 14 | Fork Length | 490 | 490 | 509 | 509 | 509 |
| 15 | Fork Offset | 42 | 42 | 51 | 51 | 51 |
Sizing & Selection
Choosing the right bike size is essential for comfort, performance, and the best riding experience. To help you select the correct size:
- Check Our Sizing and Fit Chart: Use the chart below to determine the size range that works best for your height and riding style.
- Get Personalized Recommendations: Not sure which size to choose? Fill out our Sizing Form, and Kona staff will provide suggestions to help you find the perfect fit.
GRAVEL / DROP BAR / URBAN
| Height/Inches | Height/Metric | Inseam/Inches | Inseam/Metric | Rove | Libre | Sutra/Ouroboros | Dews | CoCo |
|---|---|---|---|---|---|---|---|---|
| 4'10"-5'1" | 147-155cm | 24”-27” | 61-69cm | 48cm | 50cm | 48cm | N/A | XS |
| 5'0"-5'3" | 152-160cm | 26"-29" | 66-74cm | 48-50cm | 50cm | 48-50cm | Small | Small |
| 5'2"-5'7" | 157-170cm | 27"-30" | 69-76cm | 48-52cm | 50-52cm | 48-52cm | Small, Medium | Small, Medium |
| 5'6"-5'10" | 168-178cm | 29"-31" | 74-79cm | 52-54cm | 52-54cm | 52-54cm | Medium | Medium |
| 5'9"-6'0" | 175-183cm | 30"-33" | 76-84cm | 52-56cm | 54-56cm | 54-56cm | Medium, Large | Medium, Large |
| 5'11"-6'2" | 180-188cm | 32"-35" | 81-89cm | 54-58cm | 54-58cm | 54-58cm | Large, XL | Large |
| 6'1"-6'5" | 185-196cm | 33"-36" | 84-91cm | 56-58cm | 58cm | 56-58cm | XL | N/A |
MTB FULL SUSPENSION / HARDTAIL / SPLICE
| Height/Inches | Height/Metric | Inseam/Inches | Inseam/Metric | MTB/XC Trail/Fat | All Mountain/Enduro | Splice |
|---|---|---|---|---|---|---|
| 4'10"-5'1" | 147-155cm | 24”-27” | 61-69cm | XS | XS | Small |
| 5'0"-5'3" | 152-160cm | 26"-29" | 66-74cm | Small | Small | Small |
| 5'2"-5'7" | 157-170cm | 27"-30" | 69-76cm | Small, Medium | Small, Medium | Small, Medium |
| 5'6"-5'10" | 168-178cm | 29"-31" | 74-79cm | Medium | Medium | Medium |
| 5'9"-6'0" | 175-183cm | 30"-33" | 76-84cm | Medium, Large | Medium, Large | Medium, Large |
| 5'11"-6'2" | 180-188cm | 32"-35" | 81-89cm | Large, XL | Large, XL | Large, XL |
| 6'1"-6'5" | 185-196cm | 33"-36" | 84-91cm | Large, XL | Large, XL | Large, XL |
