Hei Hei CR/DL Frame
Not finding what you want here?
Contact your local Kona Dealer.

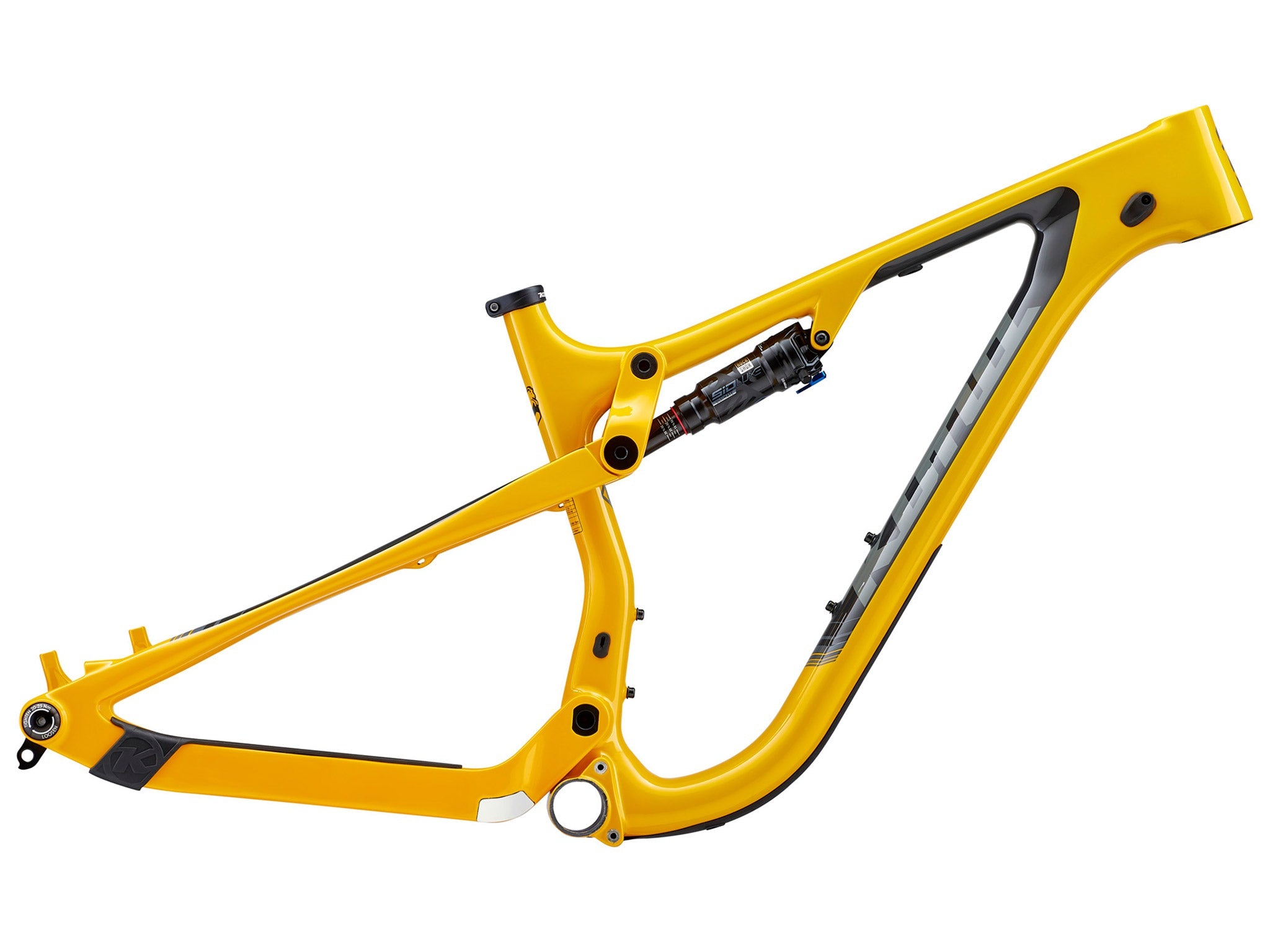

The Hei Hei CR DL is a bike that wins big. It’s bagged three 24-hour solo world championships under Cory Wallace. It’s won huge stage races and its bagged world records. The gorgeous Kona Race Light Carbon frame features tasty, high-end components that are light, sturdy, and intended to go the distance. Don’t be fooled by the 120mm of travel. We built this bike so not only does it climb like a bat out of hell, but it is fully capable of taking you down some seriously tricky terrain. Go fast and win big with the Hei Hei CR DL.
“Kona have crafted a long-legged race weapon that is also an incredibly fun trail bike.” -Beta Mag
GEOMETRY
| Size | S | M | L | XL | |
| 1 | ST Length | 370 | 420 | 470 | 530 |
| 2 | TT Length | 573 | 601 | 627 | 663 |
| 3 | Reach | 415 | 440 | 465 | 500 |
| 4 | Stack | 591 | 600 | 605 | 610 |
| 5 | Standover | 741 | 741 | 741 | 741 |
| 6 | HT Angle | 67.5 | 67.5 | 67.5 | 67.5 |
| 7 | HT Length | 90 | 100 | 105 | 110 |
| 8 | ST Angle | 75 | 75 | 75 | 75 |
| 9 | CS Length | 430 | 430 | 430 | 430 |
| 10 | BB Drop | 35 | 35 | 35 | 35 |
| 11 | BB Height | 340 | 340 | 340 | 340 |
| 12 | Wheelbase | 1129 | 1158 | 1185 | 1222 |
| 13 | Front Center | 701 | 730 | 757 | 794 |
| 14 | Fork Length | 530 | 530 | 530 | 530 |
| 15 | Fork Offset | 51 | 51 | 51 | 51 |
SIZING & SELECTION
Choosing the right bike size is essential for comfort, performance, and the best riding experience. To help you select the correct size:
- Check Our Sizing and Fit Chart: Use the chart below to determine the size range that works best for your height and riding style.
- Get Personalized Recommendations: Not sure which size to choose? Fill out our Sizing Form, and Kona staff will provide suggestions to help you find the perfect fit.
GRAVEL / DROP BAR / URBAN
| HEIGHT/INCHES | HEIGHT/METRIC | INSEAM/INCHES | INSEAM/METRIC | Rove/Jake | Libre | Sutra | Dews | CoCo |
|---|---|---|---|---|---|---|---|---|
| 4'10"-5'1" | 147-155cm | 24”-27” | 61-69cm | 48cm | 50cm | 48cm | N/A | XS |
| 5'0"-5'3" | 152-160cm | 26"-29" | 66-74cm | 48-50cm | 50cm | 48-50cm | Small | Small |
| 5'2"-5'7" | 157-170cm | 27"-30" | 69-76cm | 48-52cm | 50-52cm | 48-52cm | Small, Medium | Small, Medium |
| 5'6"-5'10" | 168-178cm | 29"-31" | 74-79cm | 52-54cm | 52-54cm | 52-54cm | Medium | Medium |
| 5'9"-6'0" | 175-183cm | 30"-33" | 76-84cm | 52-56cm | 54-56cm | 54-56cm | Medium, Large | Medium, Large |
| 5'11"-6'2" | 180-188cm | 32"-35" | 81-89cm | 54-58cm | 54-58cm | 54-58cm | Large, XL | Large |
| 6'1"-6'5" | 185-196cm | 33"-36" | 84-91cm | 56-58cm | 58cm | 56-58cm | XL | N/A |
MTB FULL SUSPENSION / HARDTAIL / SPLICE
| HEIGHT/INCHES | HEIGHT/METRIC | INSEAM/INCHES | INSEAM/METRIC | MTB/XC Trail/Fat | All Mountain/Enduro | Splice |
|---|---|---|---|---|---|---|
| 4'10"-5'1" | 147-155cm | 24”-27” | 61-69cm | XS | XS | Small |
| 5'0"-5'3" | 152-160cm | 26"-29" | 66-74cm | Small | Small | Small |
| 5'2"-5'7" | 157-170cm | 27"-30" | 69-76cm | Small, Medium | Small, Medium | Small, Medium |
| 5'6"-5'10" | 168-178cm | 29"-31" | 74-79cm | Medium | Medium | Medium |
| 5'9"-6'0" | 175-183cm | 30"-33" | 76-84cm | Medium, Large | Medium, Large | Medium, Large |
| 5'11"-6'2" | 180-188cm | 32"-35" | 81-89cm | Large, XL | Large, XL | Large, XL |
| 6'1"-6'5" | 185-196cm | 33"-36" | 84-91cm | Large, XL | Large, XL | Large, XL |
