Kahuna DL
Sale price€1.999,00 EUR
Regular price (/)

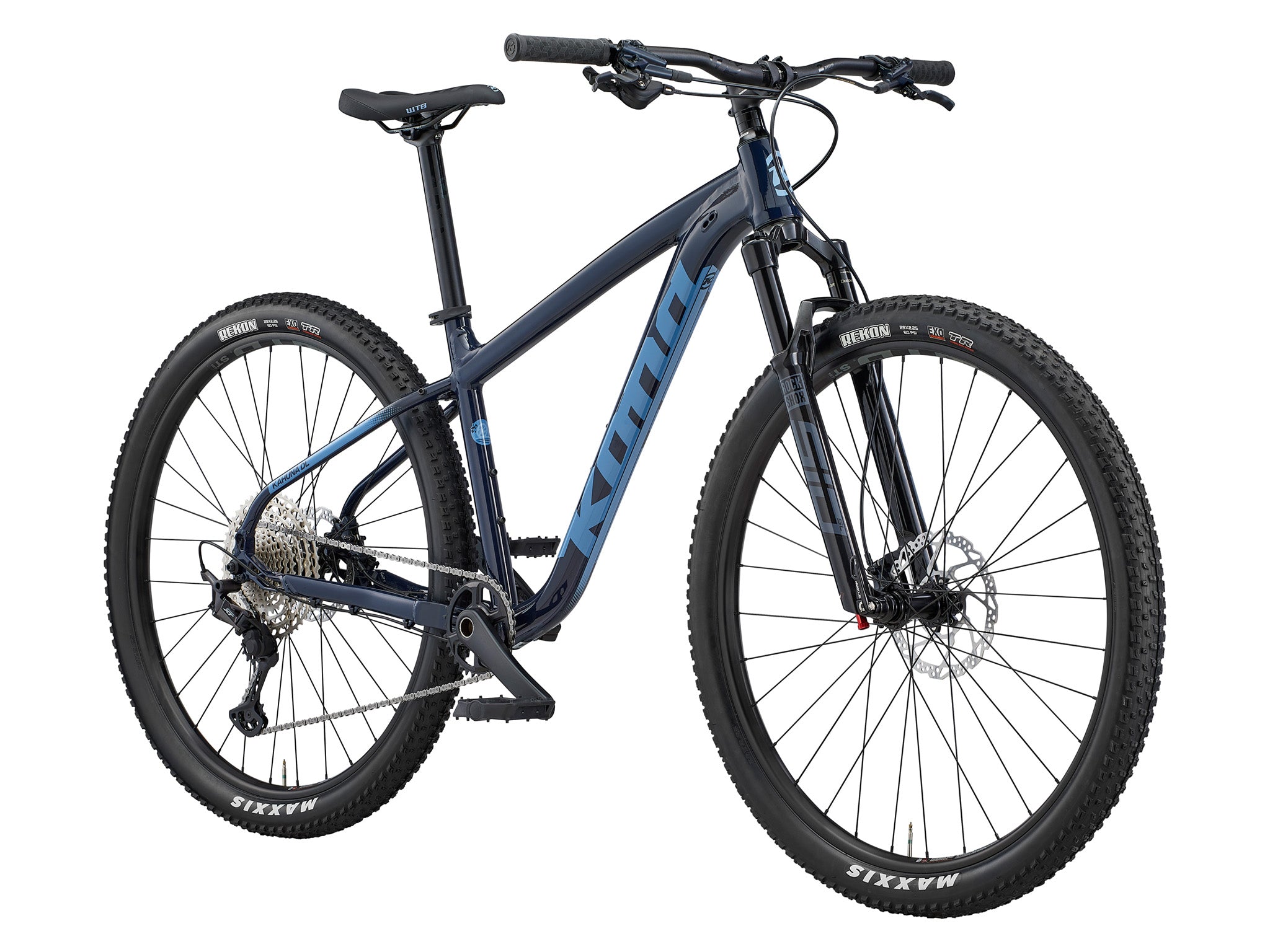

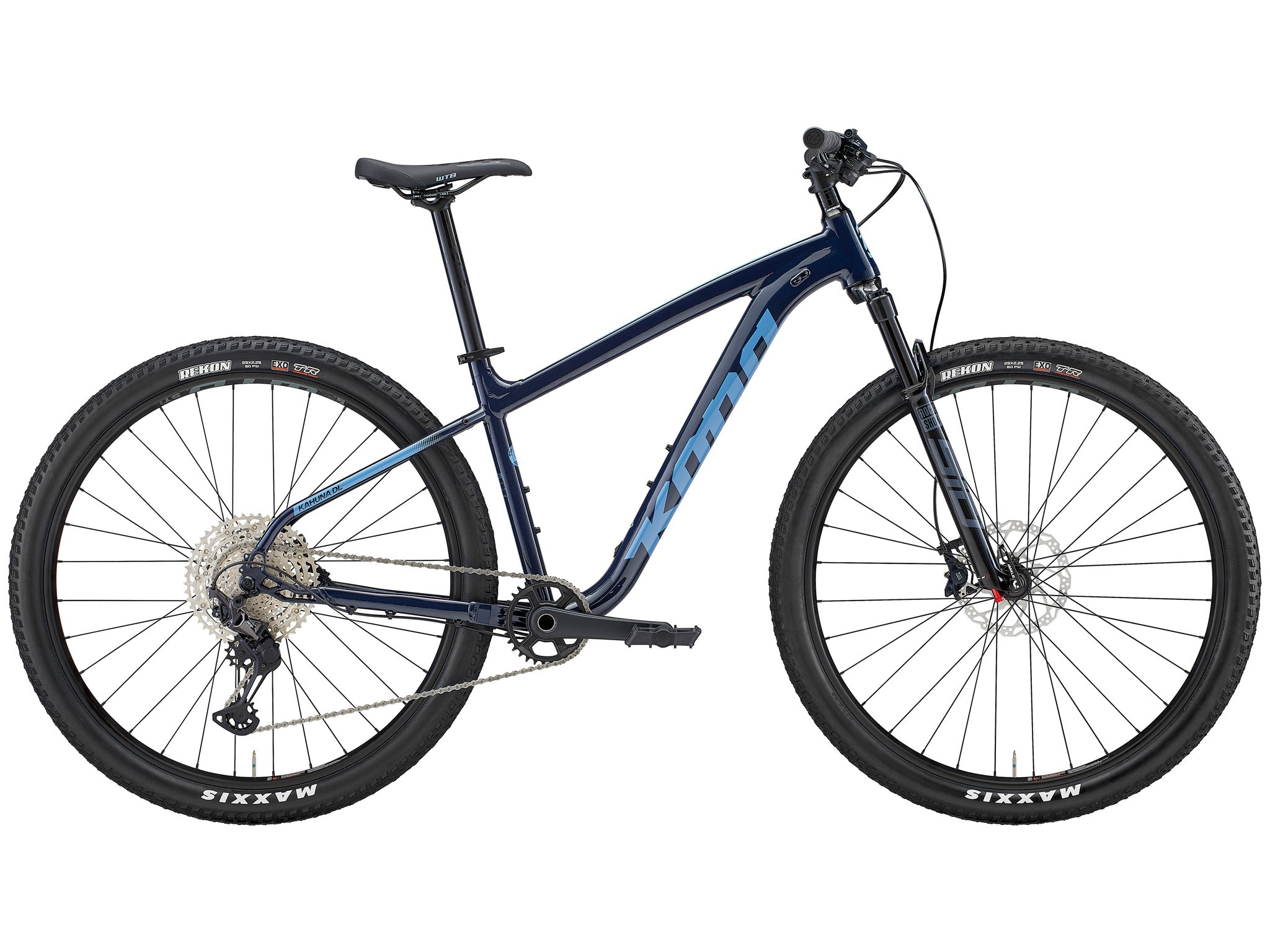

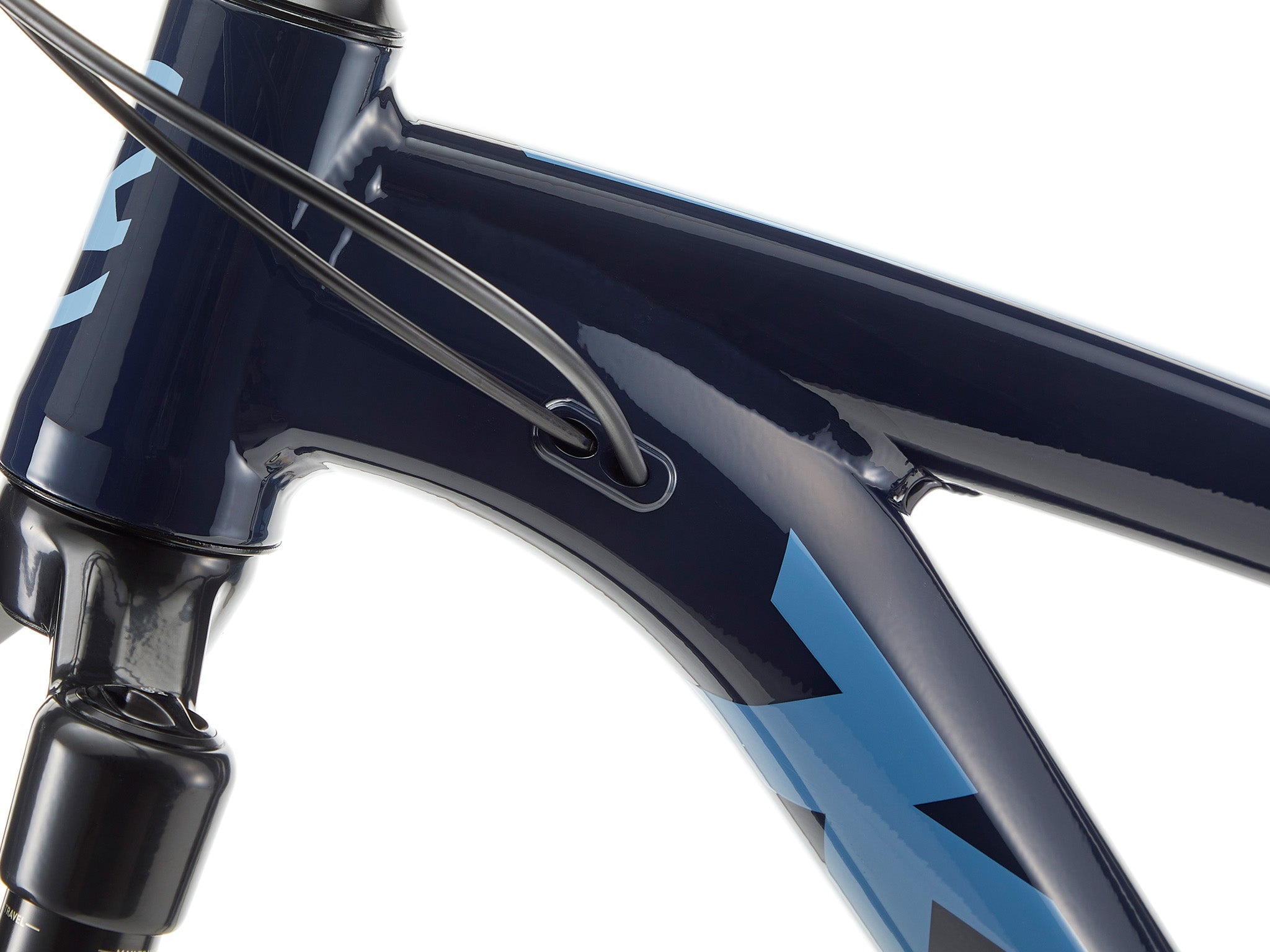

Say hello to the Kahuna DL! This gorgeous aluminum frame features smooth welds for an ultra-clean look. We took everything people loved about the Kahuna and made it even nicer with a deluxe set of components to give you an ultra-smooth ride on 29” wheels with Boost spacing front and rear. The Kahuna DL is an excellent choice for riders wanting to dive deeper into singletrack riding with a bike that leaves nothing to be desired and can hold its own across a wide variety of terrain.
SPECS & GEOMETRY
SPECIFICATIONS
| Frame Material | Kona Race Light 6061 Aluminum Butted |
| Sizes | S, M, L, XL |
| Rear Shock | n/a |
| Fork | RockShox Sid SL DebonAir 100mm Tapered 110mm Spacing |
| Crankarms | SRAM NX Eagle PS |
| Chainrings | 32t X-Sync Eagle |
| B/B | SRAM PS |
| Pedals | n/a |
| Chain | SRAM NX-Eagle |
| Cassette | SRAM GX-Eagle 10-52t 12spd |
| Chainguide | n/a |
| F/D | n/a |
| R/D | SRAM GX-Eagle |
| Shifters | SRAM GX-Eagle |
| Brake Calipers | SRAM Level TL |
| Front Brake Rotor | SRAM Centerline 180mm |
| Rear Brake Rotor | SRAM Centerline 160mm |
| Brake Levers | SRAM Level TL |
| Headset | FSA No.57B |
| Handlebar | Kona XC/BC Riser |
| Stem | Kona XC |
| Seatpost | Kona Thumb w/Offset 31.6mm |
| Seat Clamp | Kona QR |
| Grips | Kona Key Grip |
| Saddle | WTB Volt |
| Front Hub | Formula 110x15mm |
| Rear Hub | Formula 148x12mm |
| Spokes | Stainless Black 14g |
| Rims | WTB ST i27 TCS 2.0 |
| Front Tire | Maxxis Rekon EXO TR DUAL 29x2.25" |
| Rear Tire | Maxxis Rekon EXO TR DUAL 29x2.25" |
| Paint Color | Gloss Midnight w/ Blue-Grey Decals |
All specifications are subject to change without notice.
GEOMETRY
| Size | S | M | L | XL | |
| 1 | ST Length | 370 | 420 | 470 | 530 |
| 2 | TT Length | 576 | 604 | 631 | 669 |
| 3 | Reach | 415 | 440 | 465 | 500 |
| 4 | Stack | 602 | 611 | 620 | 629 |
| 5 | Standover | 727 | 733 | 738 | 760 |
| 6 | HT Angle | 68.0 | 68.0 | 68.0 | 68.0 |
| 7 | HT Length | 95 | 105 | 115 | 125 |
| 8 | ST Angle | 75.0 | 75.0 | 75.0 | 75.0 |
| 9 | CS Length | 450 | 450 | 450 | 450 |
| 10 | BB Drop | 60 | 60 | 60 | 60 |
| 11 | BB Height | 315 | 315 | 315 | 315 |
| 12 | Wheelbase | 1135 | 1164 | 1192 | 1231 |
| 13 | Front Center | 691 | 720 | 749 | 787 |
| 14 | Fork Length | 506 | 506 | 506 | 506 |
| 15 | Fork Offset | 51 | 51 | 51 | 51 |
Sizing & Selection
Choosing the right bike size is essential for comfort, performance, and the best riding experience. To help you select the correct size:
- Check Our Sizing and Fit Chart: Use the chart below to determine the size range that works best for your height and riding style.
- Get Personalized Recommendations: Not sure which size to choose? Fill out our Sizing Form, and Kona staff will provide suggestions to help you find the perfect fit.
GRAVEL / DROP BAR / URBAN
| Height/Inches | Height/Metric | Inseam/Inches | Inseam/Metric | Rove | Libre | Sutra/Ouroboros | Dews | CoCo |
|---|---|---|---|---|---|---|---|---|
| 4'10"-5'1" | 147-155cm | 24”-27” | 61-69cm | 48cm | 50cm | 48cm | N/A | XS |
| 5'0"-5'3" | 152-160cm | 26"-29" | 66-74cm | 48-50cm | 50cm | 48-50cm | Small | Small |
| 5'2"-5'7" | 157-170cm | 27"-30" | 69-76cm | 48-52cm | 50-52cm | 48-52cm | Small, Medium | Small, Medium |
| 5'6"-5'10" | 168-178cm | 29"-31" | 74-79cm | 52-54cm | 52-54cm | 52-54cm | Medium | Medium |
| 5'9"-6'0" | 175-183cm | 30"-33" | 76-84cm | 52-56cm | 54-56cm | 54-56cm | Medium, Large | Medium, Large |
| 5'11"-6'2" | 180-188cm | 32"-35" | 81-89cm | 54-58cm | 54-58cm | 54-58cm | Large, XL | Large |
| 6'1"-6'5" | 185-196cm | 33"-36" | 84-91cm | 56-58cm | 58cm | 56-58cm | XL | N/A |
MTB FULL SUSPENSION / HARDTAIL / SPLICE
| Height/Inches | Height/Metric | Inseam/Inches | Inseam/Metric | MTB/XC Trail/Fat | All Mountain/Enduro | Splice |
|---|---|---|---|---|---|---|
| 4'10"-5'1" | 147-155cm | 24”-27” | 61-69cm | XS | XS | Small |
| 5'0"-5'3" | 152-160cm | 26"-29" | 66-74cm | Small | Small | Small |
| 5'2"-5'7" | 157-170cm | 27"-30" | 69-76cm | Small, Medium | Small, Medium | Small, Medium |
| 5'6"-5'10" | 168-178cm | 29"-31" | 74-79cm | Medium | Medium | Medium |
| 5'9"-6'0" | 175-183cm | 30"-33" | 76-84cm | Medium, Large | Medium, Large | Medium, Large |
| 5'11"-6'2" | 180-188cm | 32"-35" | 81-89cm | Large, XL | Large, XL | Large, XL |
| 6'1"-6'5" | 185-196cm | 33"-36" | 84-91cm | Large, XL | Large, XL | Large, XL |
