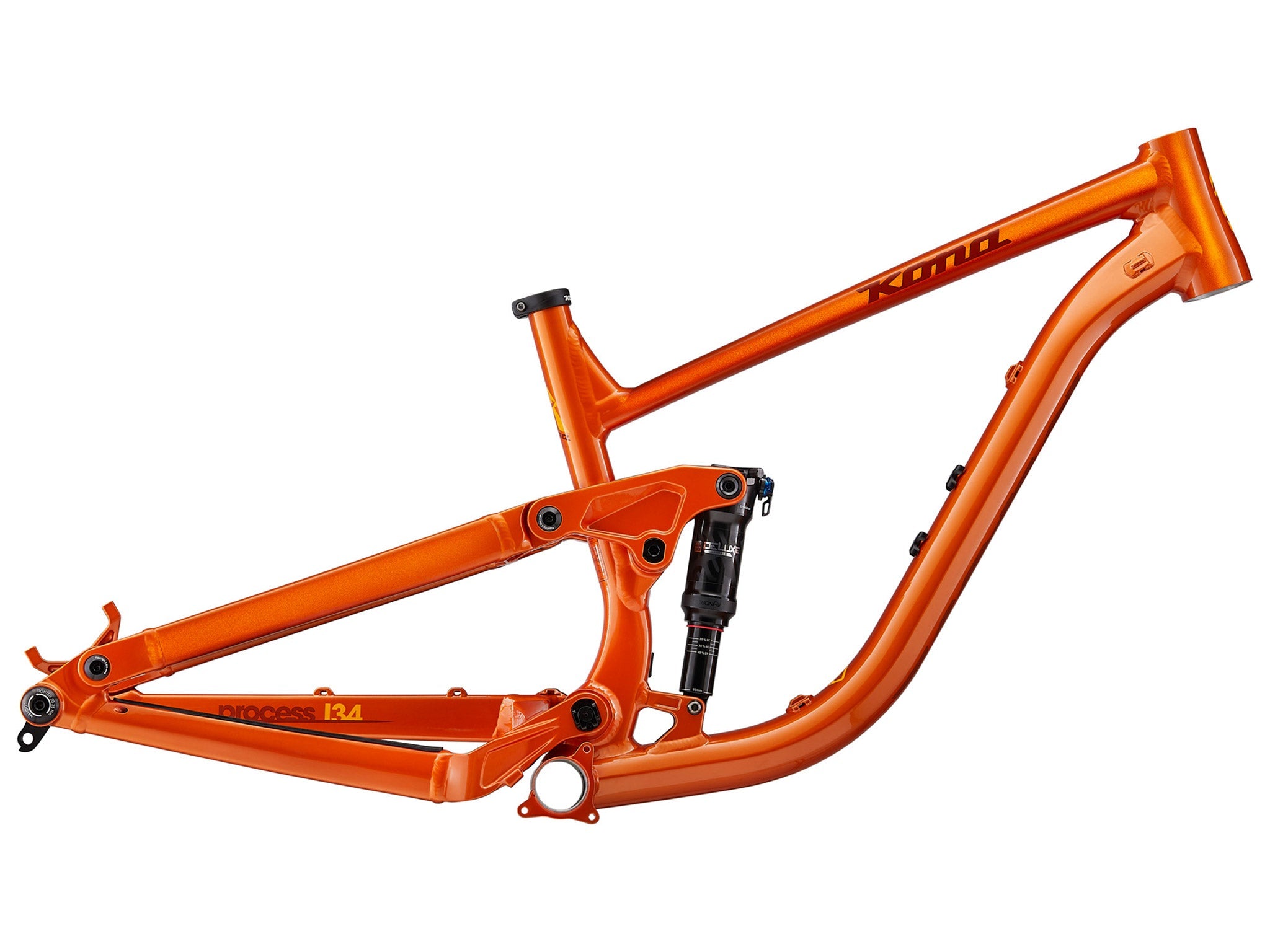

Process 134 DL 27.5 Frame

Process 134 DL 27.5 Frame

Frame with RockShox Deluxe Ultimate rear shock and Kona thru-axle
Sale price€1.999,00 EUR
Contact dealer for availability
Size: XS

Not finding what you want here?
Contact your local Kona Dealer.

You want a nice bike, but you’ve been hesitating to pull the trigger. What’s the right amount of travel? How can you be sure you’re getting great value? How do you know this bike is the only bike you’ll need? Because you gotta trust the Process, that’s why. The Process 134 DL 27.5 is thoughtfully put together to ensure every box is checked.

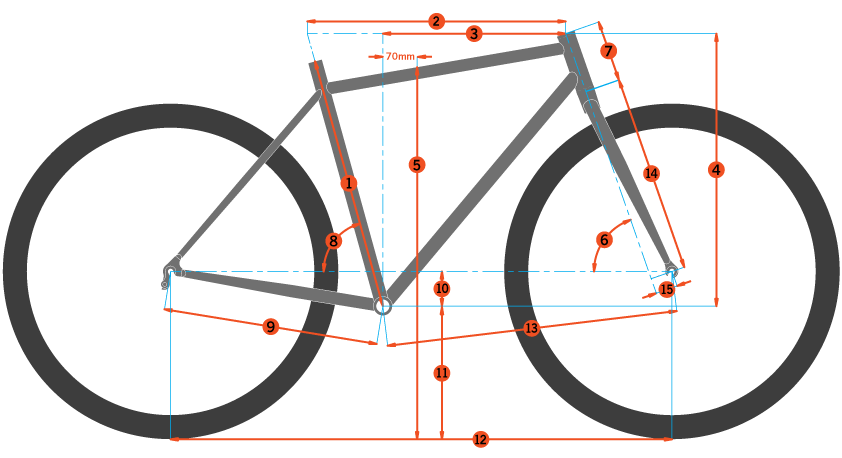

GEOMETRY

  Size XS S M L XL
1 ST Length 360 385 410 450 485
2 TT Length 537 567 596 625 664
3 Reach 400 425 450 475 510
4 Stack 585 595 605 615 626
5 Standover 674 687 712 712 711
6 HT Angle 66 66 66 66 66
7 HT Length 116 127 138 149 160
8 ST Angle 76.8 76.6 76.5 76.3 76.2
9 CS Length 425 425 425 425 425
10 BB Drop 12 12 12 12 12
11 BB Height 343 343 343 343 343
12 Wheelbase 1131 1160 1190 1219 1259
13 Front Center 706 735 765 794 834
14 Fork Length 532 532 532 532 532
15 Fork Offset 46 46 46 46 46
Bike Geometry

SIZING & SELECTION

Choosing the right bike size is essential for comfort, performance, and the best riding experience. To help you select the correct size:

  • Check Our Sizing and Fit Chart: Use the chart below to determine the size range that works best for your height and riding style.
  • Get Personalized Recommendations: Not sure which size to choose? Fill out our Sizing Form, and Kona staff will provide suggestions to help you find the perfect fit.

GRAVEL / DROP BAR / URBAN

HEIGHT/INCHES HEIGHT/METRIC INSEAM/INCHES INSEAM/METRIC Rove/Jake Libre Sutra Dews CoCo
4'10"-5'1" 147-155cm 24”-27” 61-69cm 48cm 50cm 48cm N/A XS
5'0"-5'3" 152-160cm 26"-29" 66-74cm 48-50cm 50cm 48-50cm Small Small
5'2"-5'7" 157-170cm 27"-30" 69-76cm 48-52cm 50-52cm 48-52cm Small, Medium Small, Medium
5'6"-5'10" 168-178cm 29"-31" 74-79cm 52-54cm 52-54cm 52-54cm Medium Medium
5'9"-6'0" 175-183cm 30"-33" 76-84cm 52-56cm 54-56cm 54-56cm Medium, Large Medium, Large
5'11"-6'2" 180-188cm 32"-35" 81-89cm 54-58cm 54-58cm 54-58cm Large, XL Large
6'1"-6'5" 185-196cm 33"-36" 84-91cm 56-58cm 58cm 56-58cm XL N/A

MTB FULL SUSPENSION / HARDTAIL / SPLICE

HEIGHT/INCHES HEIGHT/METRIC INSEAM/INCHES INSEAM/METRIC MTB/XC Trail/Fat All Mountain/Enduro Splice
4'10"-5'1" 147-155cm 24”-27” 61-69cm XS XS Small
5'0"-5'3" 152-160cm 26"-29" 66-74cm Small Small Small
5'2"-5'7" 157-170cm 27"-30" 69-76cm Small, Medium Small, Medium Small, Medium
5'6"-5'10" 168-178cm 29"-31" 74-79cm Medium Medium Medium
5'9"-6'0" 175-183cm 30"-33" 76-84cm Medium, Large Medium, Large Medium, Large
5'11"-6'2" 180-188cm 32"-35" 81-89cm Large, XL Large, XL Large, XL
6'1"-6'5" 185-196cm 33"-36" 84-91cm Large, XL Large, XL Large, XL
