Sale price€1.099,00 EUR
Size: 50

Not finding what you want here?
Contact your local Kona Dealer.

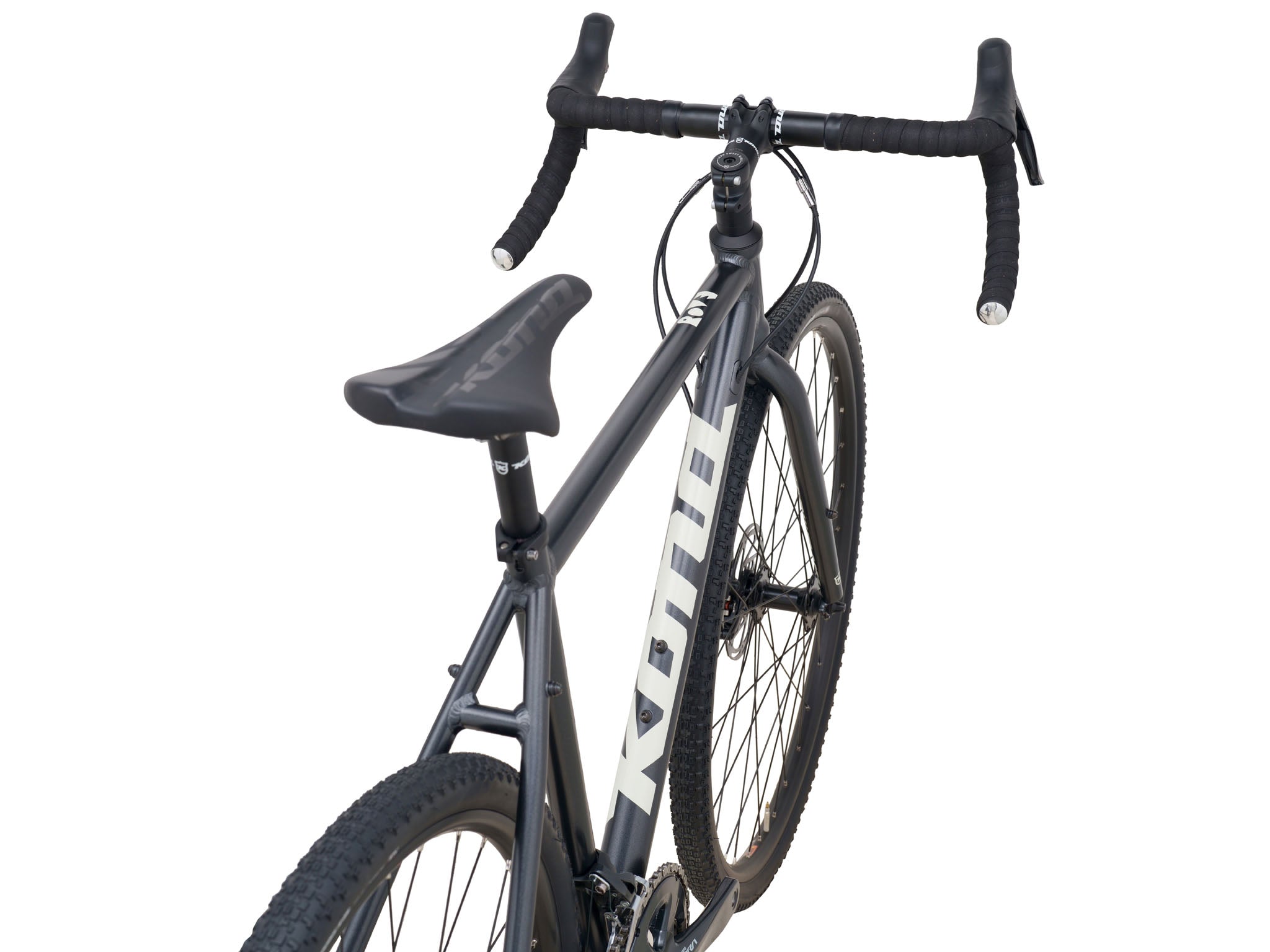

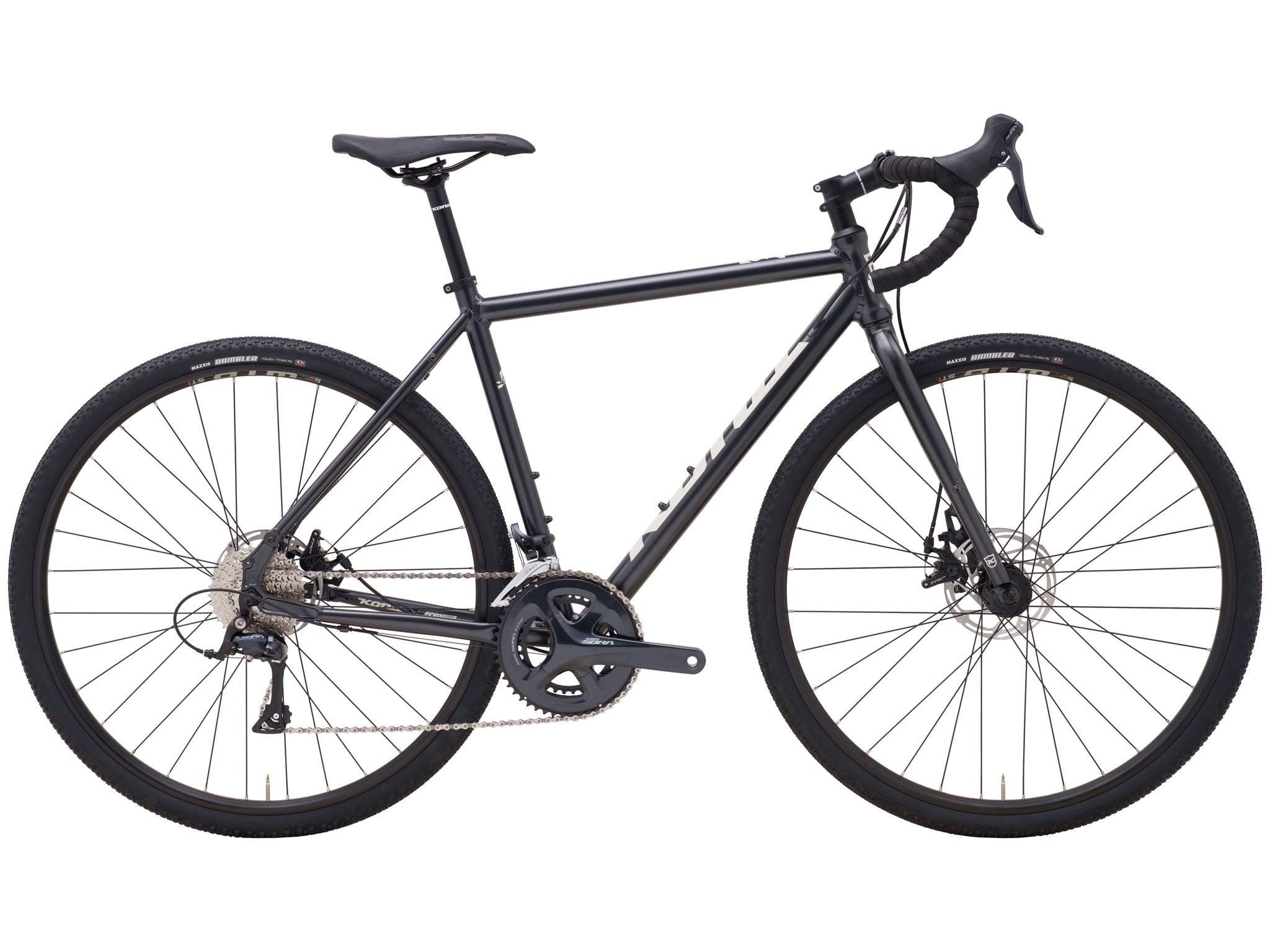

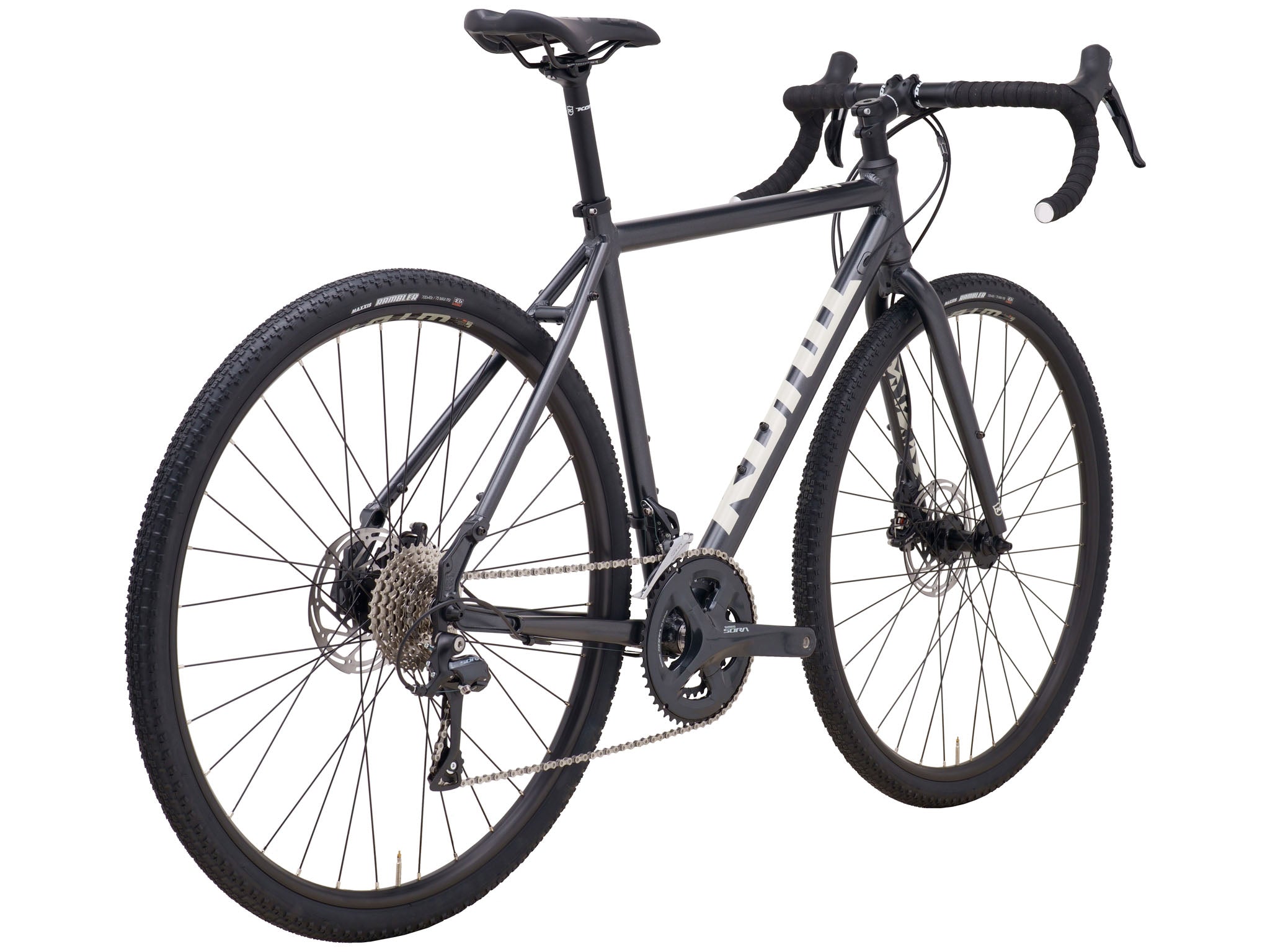

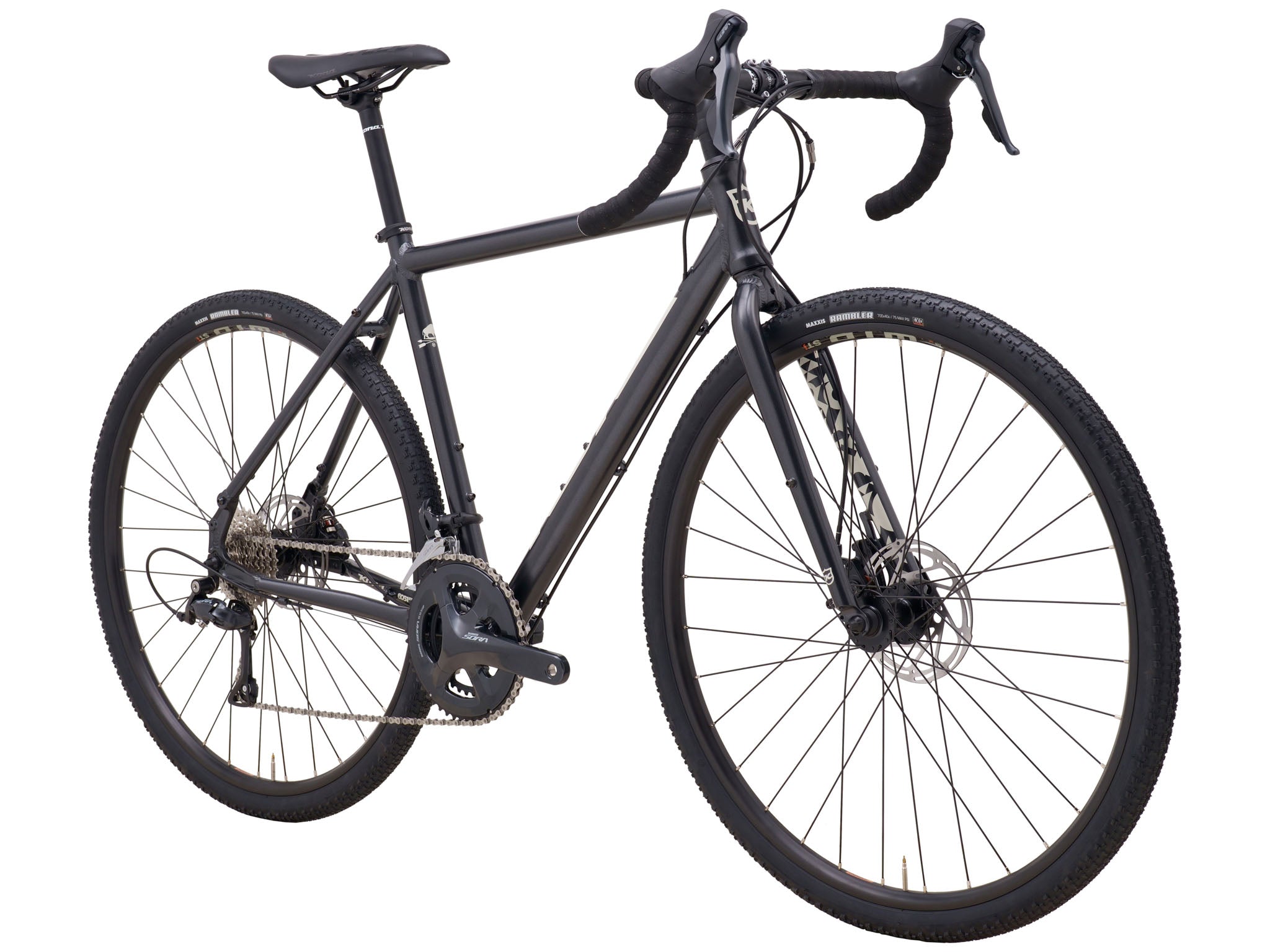

For the rider looking for the most performance at the lowest cost, the Rove AL DL is the answer. A more traditional road bike feel with hints of detouring mixed in, the Rove AL DL isn’t afraid to get lost on purpose. A lightweight aluminum frame features mechanical disc brakes, 700c tubeless rims, and a quality drivetrain. It’s quality at an affordable price and it’ll keep you smiling on your weekend group rides.

SPECS & GEOMETRY

SPECIFICATIONS

Frame Material Kona 6061 Aluminum Butted
Sizes 48, 50, 52, 54, 56, 58
Rear Shock n/a
Fork Kona Project Two Aluminum Disc

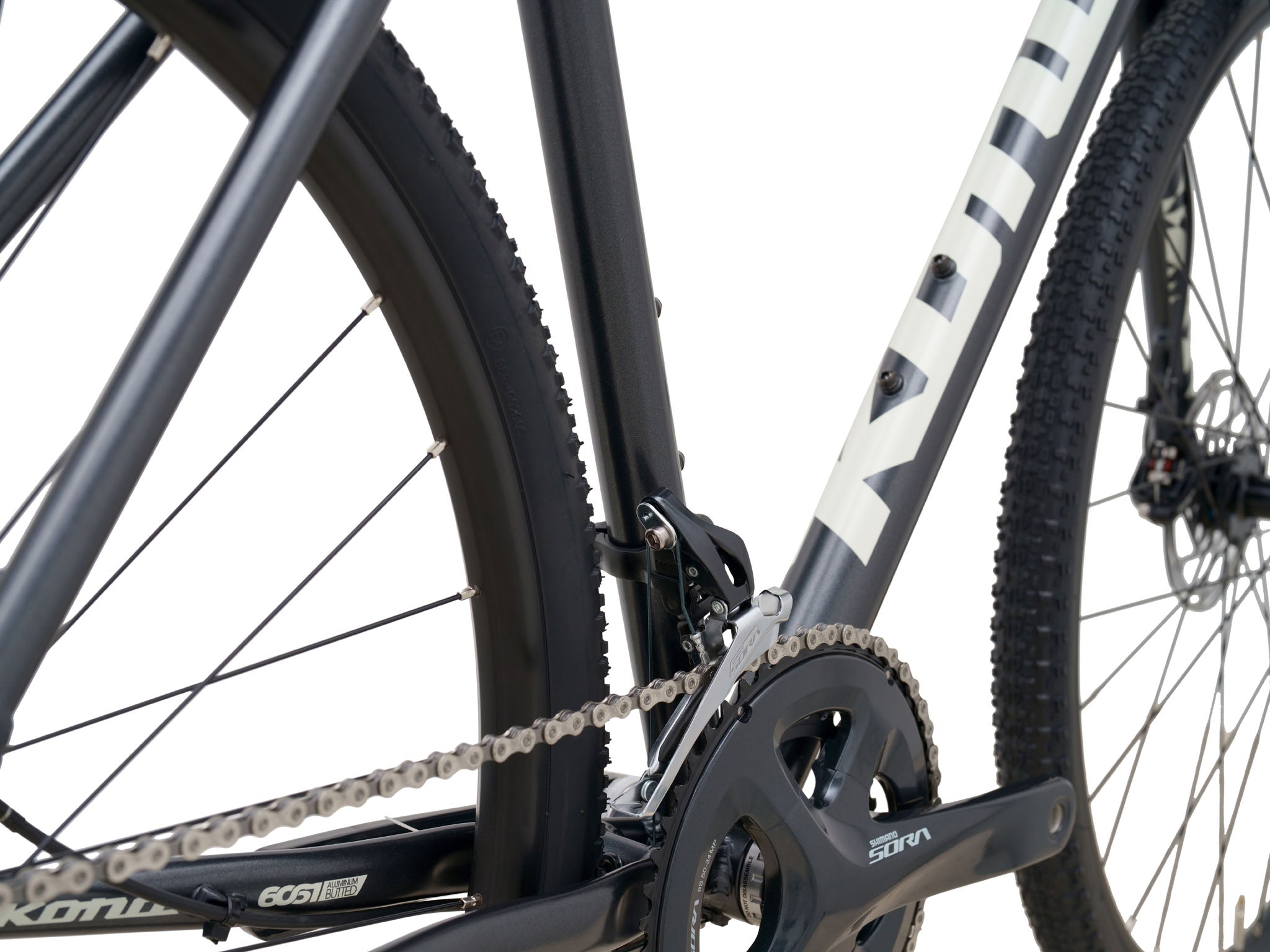

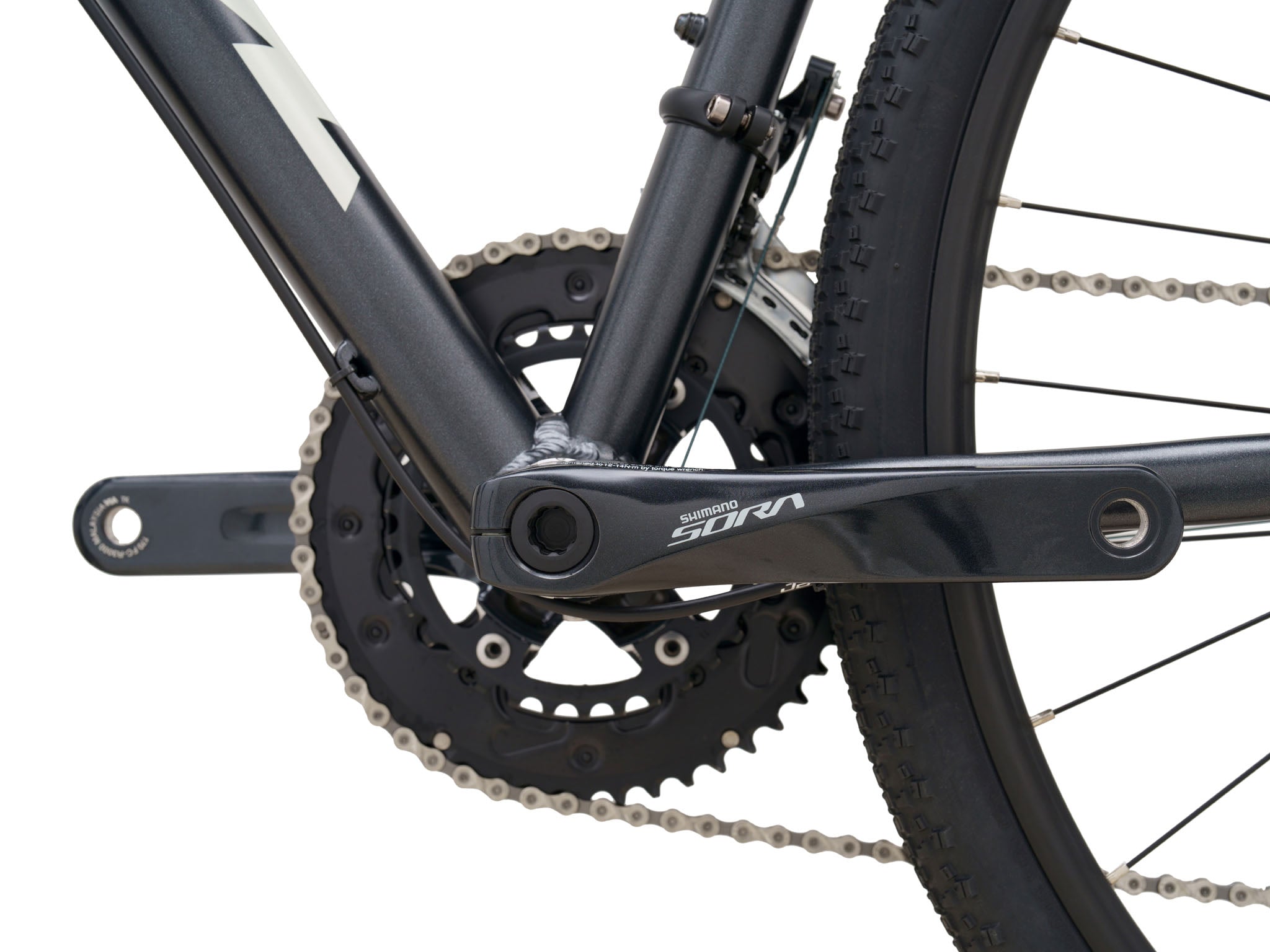

Crankarms Shimano Sora
Chainrings 34/50t
B/B Shimano
Pedals n/a
Chain KMC X9

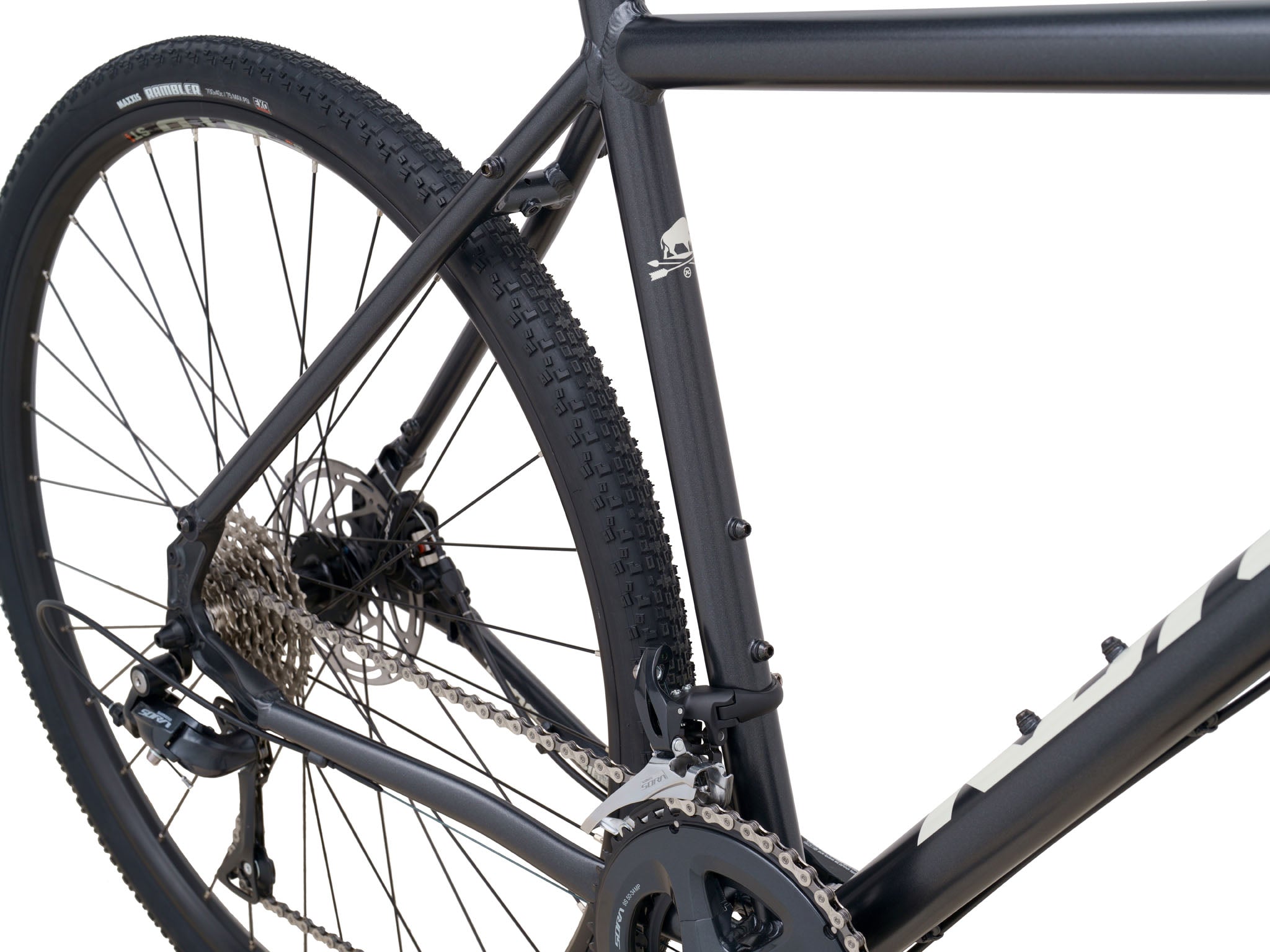

Cassette Shimano Sora 11-34t 9spd
Chainguide n/a
F/D Shimano Sora
R/D Shimano Sora
Shifters Shimano Sora
Brake Calipers Tektro MD-C605C Mechanical
Front Brake Rotor Tektro TR160 160mm
Rear Brake Rotor Tektro TR160 160mm
Brake Levers Tektro MD-C605C Mechanical
Headset Feimin FP-H863

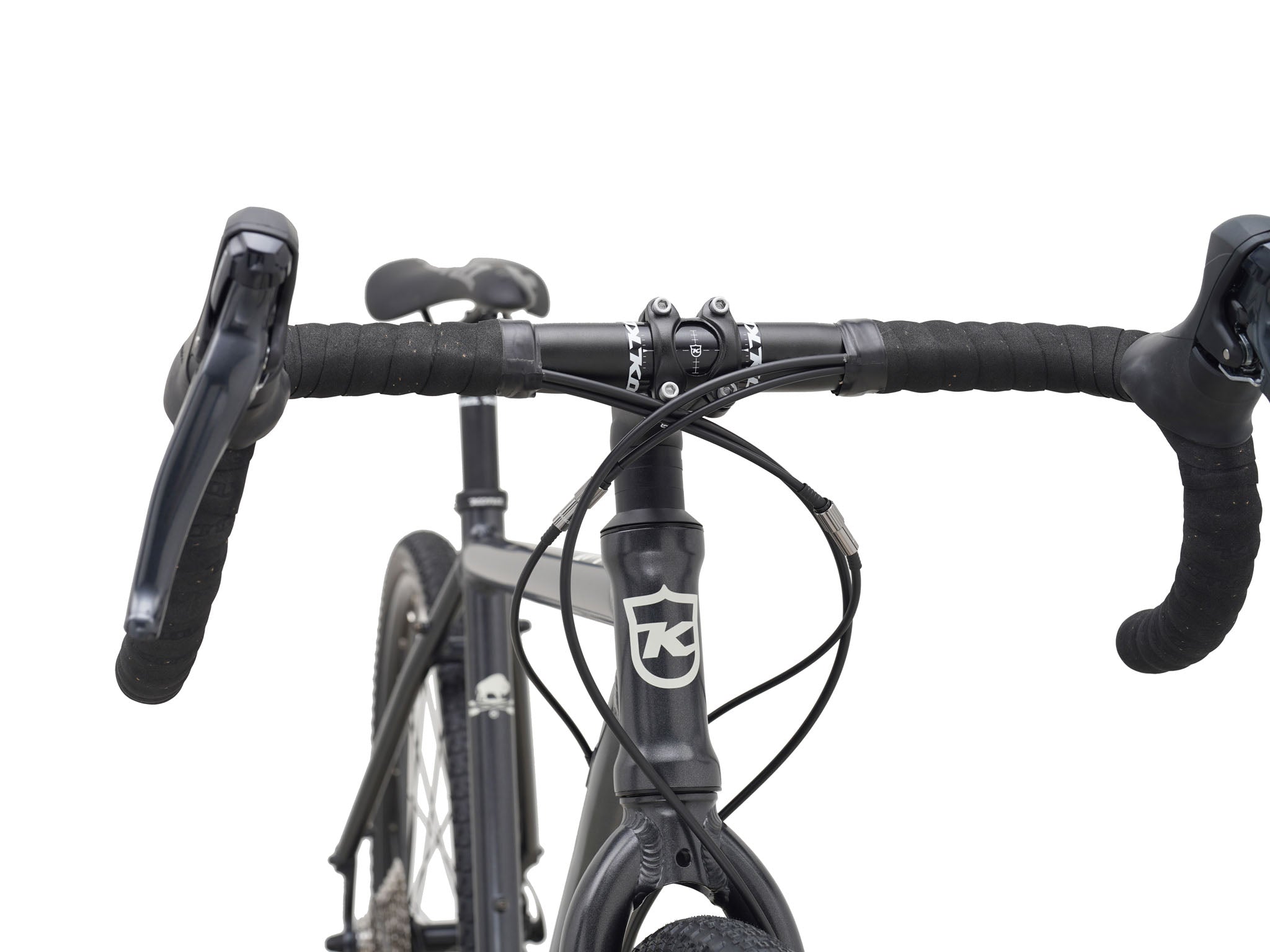

Handlebar Kona Road
Stem Kona Road
Seatpost Kona Thumb w/Offset 27.2mm
Seat Clamp Kona Clamp
Grips Kona Cork Tape
Saddle Kona Road
Front Hub Formula 100x9mm
Rear Hub Formula 135x10mm
Spokes Stainless Black 14g
Rims WTB ST i23 TCS 2.0
Front Tire Maxxis Rambler 700x40c
Rear Tire Maxxis Rambler 700x40c
Paint Color Satin Metallic Black w/ Gloss Bone Decals
All specifications are subject to change without notice.

GEOMETRY

  Size 48 50 52 54 56 58
1 ST Length 480 500 520 540 560 580
2 TT Length 516 531 549 563 578 599
3 Reach 373 378 385 388 392 400
4 Stack 532 551 570 589 608 632
5 Standover 746 765 785 805 825 845
6 HT Angle 70.5 70.5 71.0 71.0 71.5 71.5
7 HT Length 90 110 130 150 170 195
8 ST Angle 74.0 74.0 72.0 72.0 70.0 70.0
9 CS Length 435 435 435 435 435 435
10 BB Drop 74 74 72 72 70 70
11 BB Height 281 281 283 283 285 285
12 Wheelbase 1012 1023 1033 1043 1049 1065
13 Front Center 588 599 608 618 623 639
14 Fork Length 411 411 411 411 411 411
15 Fork Offset 45 45 45 45 45 45
Bike Geometry

Sizing & Selection

Choosing the right bike size is essential for comfort, performance, and the best riding experience. To help you select the correct size:

  • Check Our Sizing and Fit Chart: Use the chart below to determine the size range that works best for your height and riding style.
  • Get Personalized Recommendations: Not sure which size to choose? Fill out our Sizing Form, and Kona staff will provide suggestions to help you find the perfect fit.

GRAVEL / DROP BAR / URBAN

Height/Inches Height/Metric Inseam/Inches Inseam/Metric Rove Libre Sutra/Ouroboros Dews CoCo
4'10"-5'1" 147-155cm 24”-27” 61-69cm 48cm 50cm 48cm N/A XS
5'0"-5'3" 152-160cm 26"-29" 66-74cm 48-50cm 50cm 48-50cm Small Small
5'2"-5'7" 157-170cm 27"-30" 69-76cm 48-52cm 50-52cm 48-52cm Small, Medium Small, Medium
5'6"-5'10" 168-178cm 29"-31" 74-79cm 52-54cm 52-54cm 52-54cm Medium Medium
5'9"-6'0" 175-183cm 30"-33" 76-84cm 52-56cm 54-56cm 54-56cm Medium, Large Medium, Large
5'11"-6'2" 180-188cm 32"-35" 81-89cm 54-58cm 54-58cm 54-58cm Large, XL Large
6'1"-6'5" 185-196cm 33"-36" 84-91cm 56-58cm 58cm 56-58cm XL N/A

MTB FULL SUSPENSION / HARDTAIL / SPLICE

Height/Inches Height/Metric Inseam/Inches Inseam/Metric MTB/XC Trail/Fat All Mountain/Enduro Splice
4'10"-5'1" 147-155cm 24”-27” 61-69cm XS XS Small
5'0"-5'3" 152-160cm 26"-29" 66-74cm Small Small Small
5'2"-5'7" 157-170cm 27"-30" 69-76cm Small, Medium Small, Medium Small, Medium
5'6"-5'10" 168-178cm 29"-31" 74-79cm Medium Medium Medium
5'9"-6'0" 175-183cm 30"-33" 76-84cm Medium, Large Medium, Large Medium, Large
5'11"-6'2" 180-188cm 32"-35" 81-89cm Large, XL Large, XL Large, XL
6'1"-6'5" 185-196cm 33"-36" 84-91cm Large, XL Large, XL Large, XL
